Jira Server/Datacenter Plugin
Published Date: 30-01-2025
Read Time:
Important!
This documentation is related to Jira Plugin Version 4.9. To leverage all the latest features of Plugin on your respective Server/Data Center Instance, kindly make sure your Salesforce side package requirements are met. i.e. Sinergify Package on Salesforce should be updated to Version 6.x or above from AppExchange.
For queries drop us an email at [email protected].
Sinergify plugin allows Jira users to sync Jira updates to Salesforce. With configurable syncing, the admin can decide what updates to sync from Jira to Salesforce. Along with controlled syncing, the Jira plugin now also offers additional capabilities for Jira Users. Refer to the below use cases for an overview.
Jira Plugin Use Cases
Create Salesforce Records from Jira.
The users can Create Salesforce records directly from Jira. This feature will show all the mapped Salesforce fields relevant to the current object and project.
Let's see an example of a Salesforce Case.

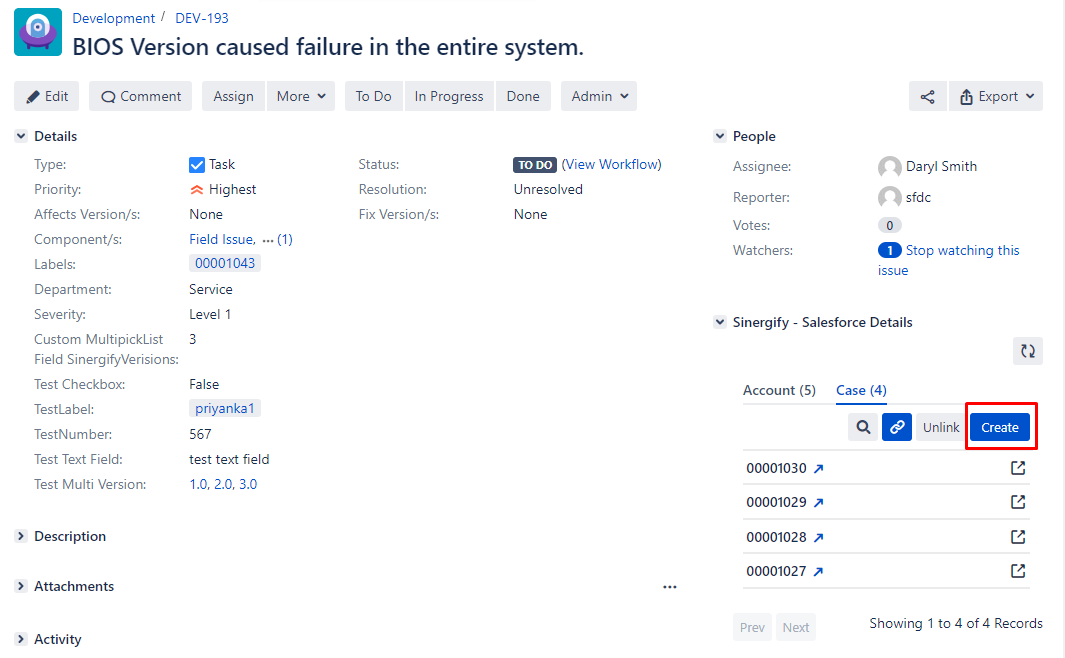

Find the Jira Plugin Application and then select the Create Button as Highlighted below.

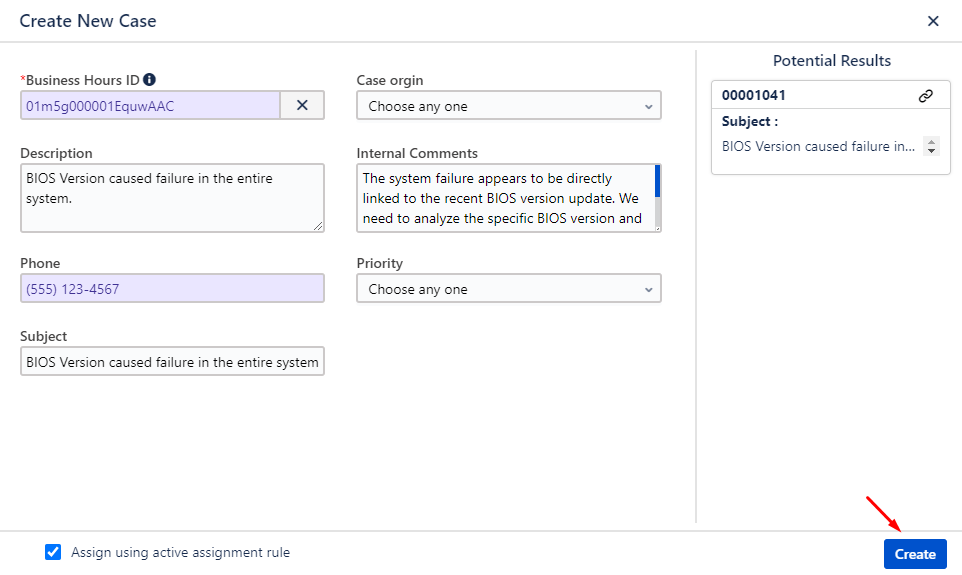

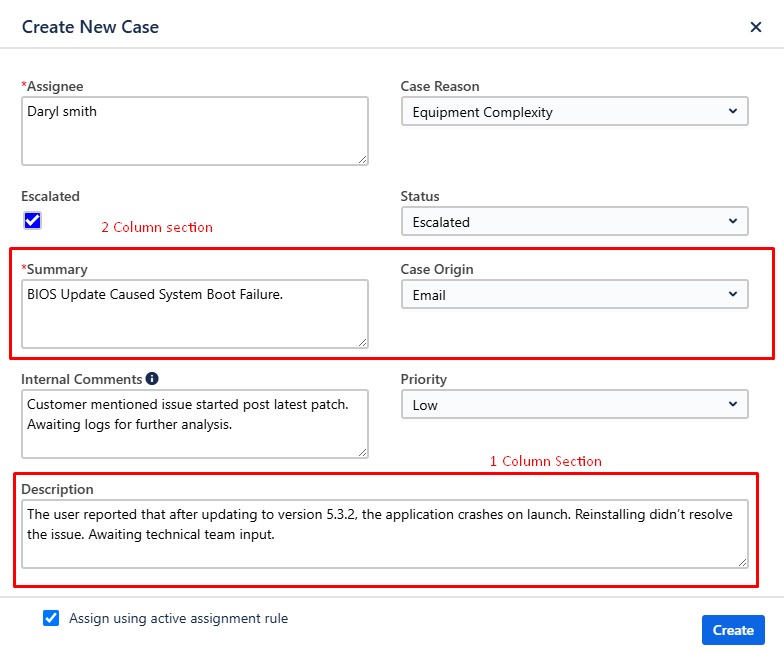

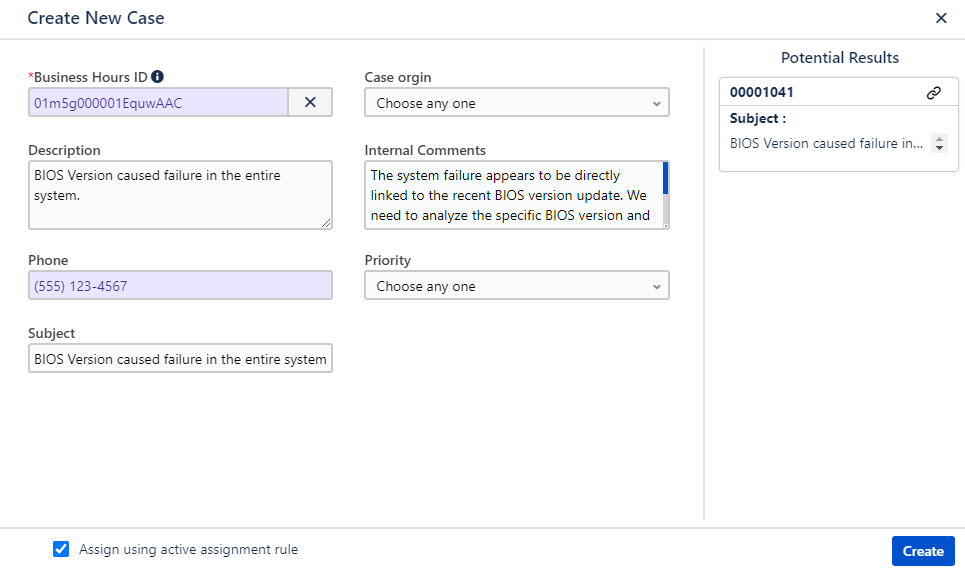

A new form will appear.
Review and update the fields. On the right side the Potential results section will appear with the similar cases, you can also link the case from Potential results.

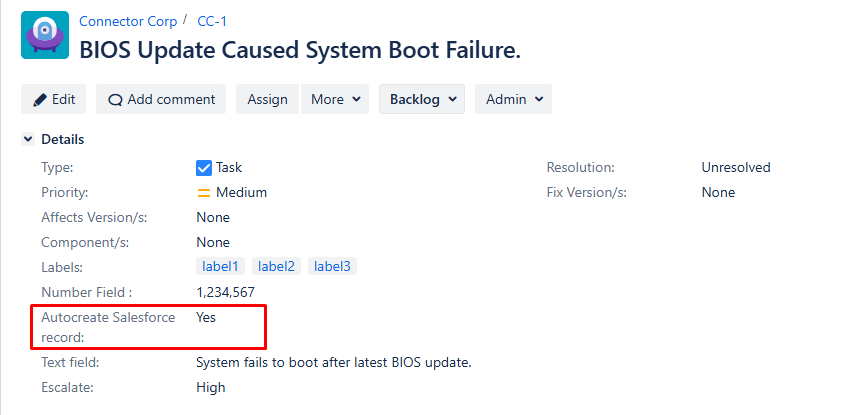

A new Salesforce record will be created in Jira. The newly created record will be linked to the Jira record and will be visible at the top of the list.
Click on the redirect button to open the record inside the Salesforce environment.

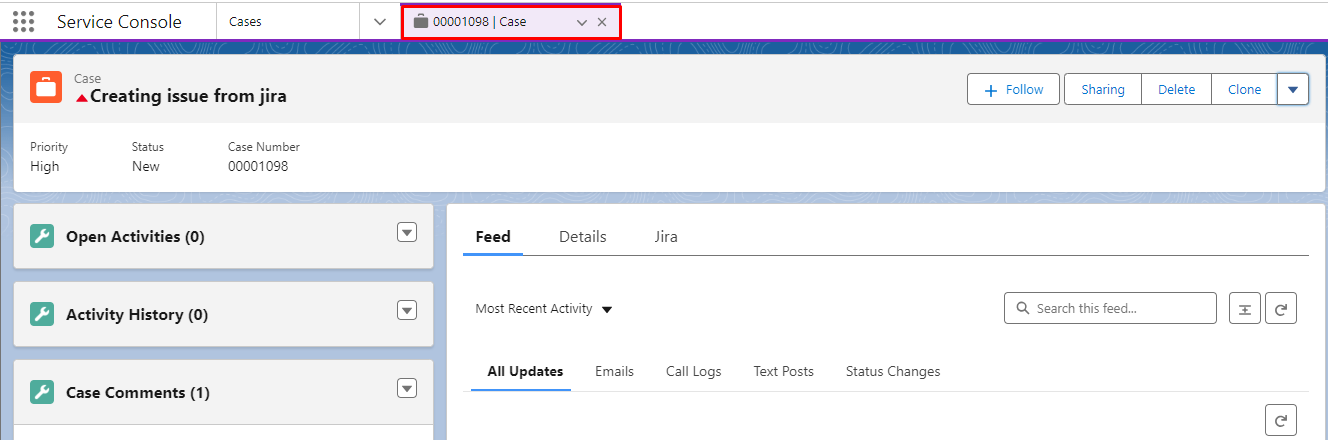

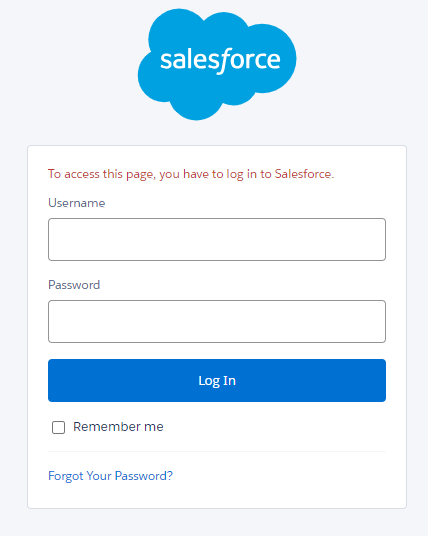

The Salesforce login screen will appear. After entering the login details you will be redirected to the Salesforce Case Environment.
Search and Link Salesforce Records
Find the Sinergify Application on the Jira Record Panel.

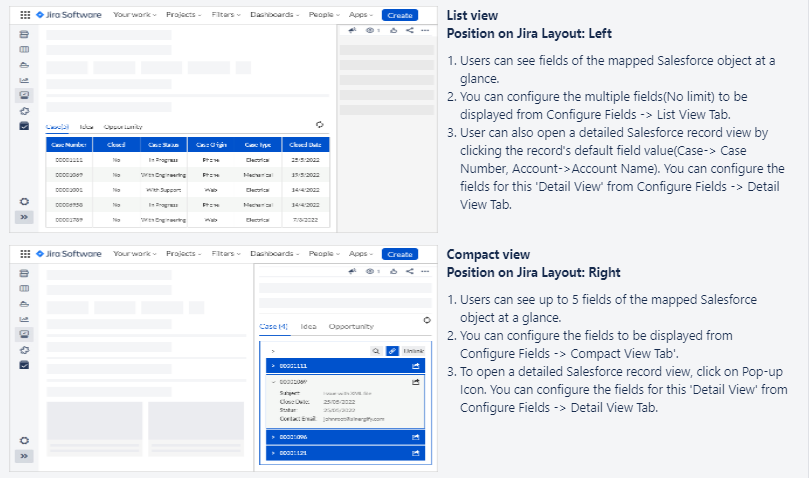

Sinergify Application Panel on the Right Side:
The Right Side Compact view will show up to 5 fields of the mapped Salesforce Object for a quick glance.

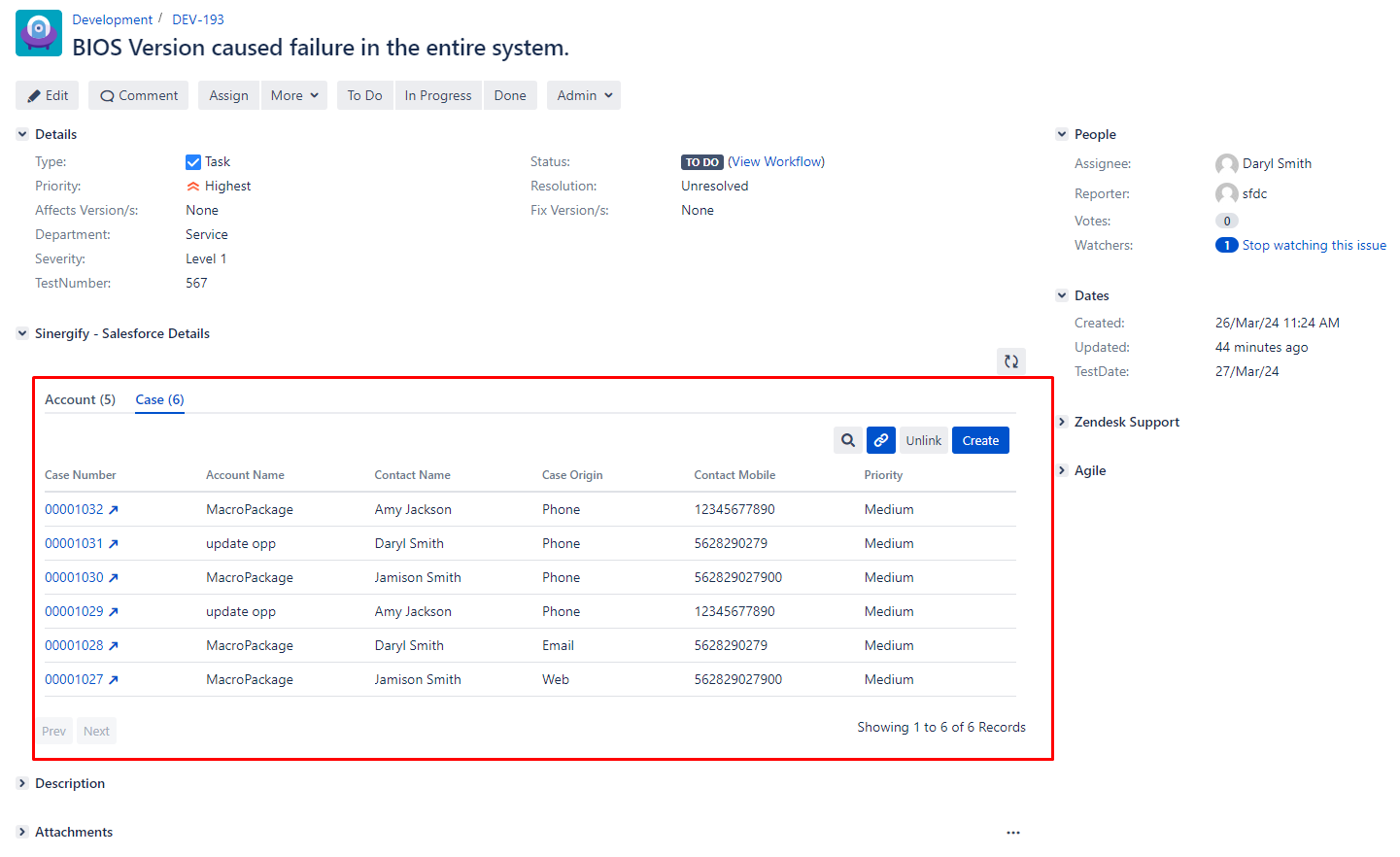

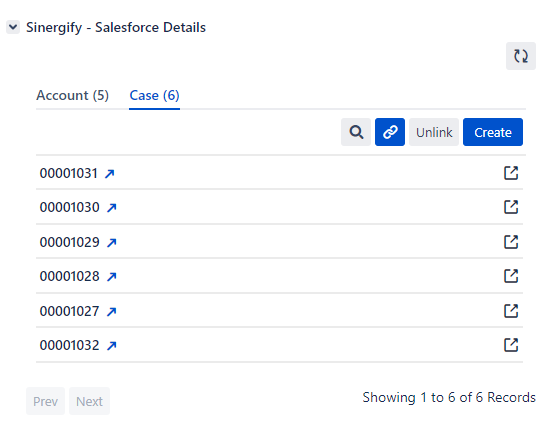

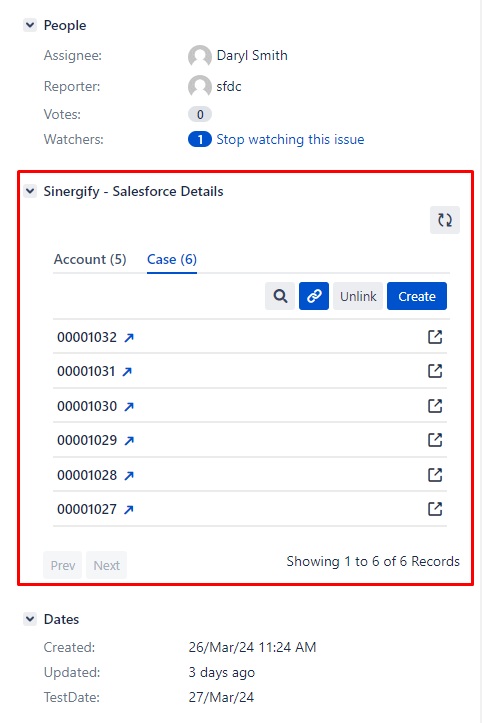

Sinergify Application Panel on Left Side:
Left Side List View can show up to the ‘n’ Number of fields of the mapped Salesforce Object for a detailed view.

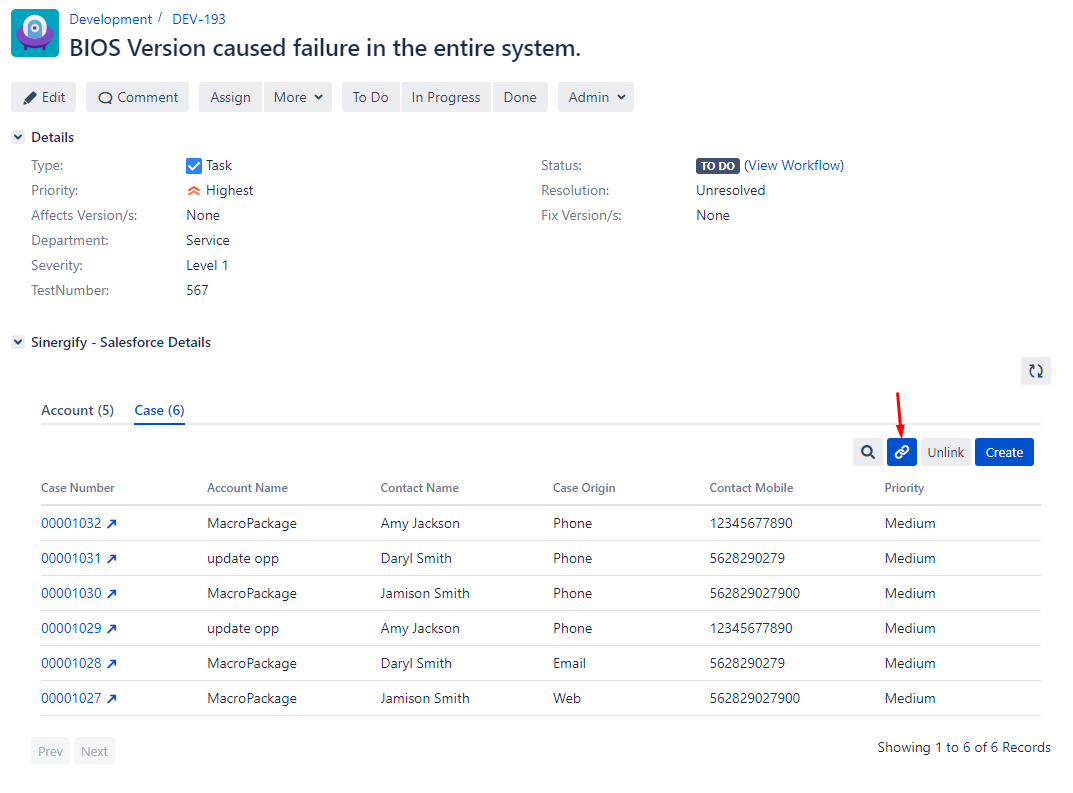

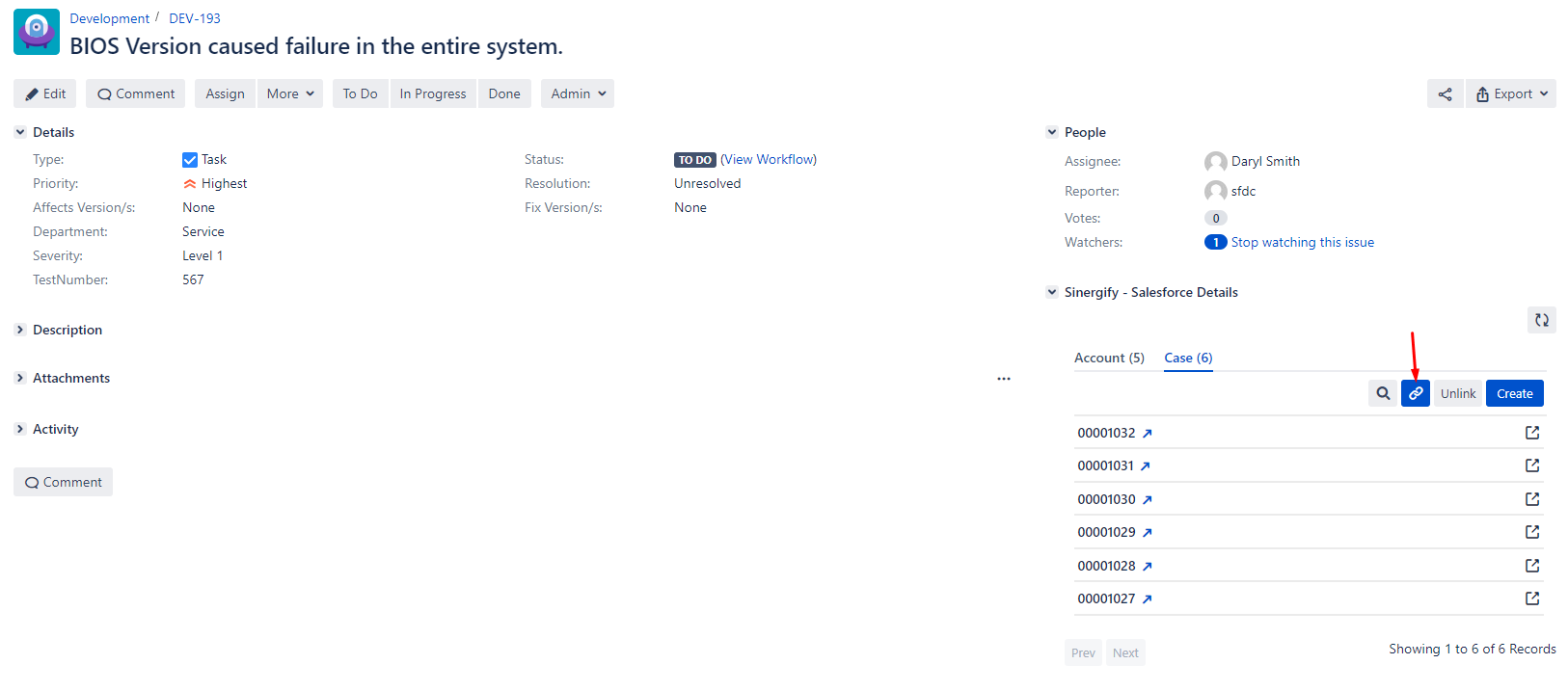

Select the link button as shown below, to link an existing Salesforce record.
[Link an existing Salesforce record from Sinergify List View]
[Link an existing Salesforce record from Sinergify Compact View]

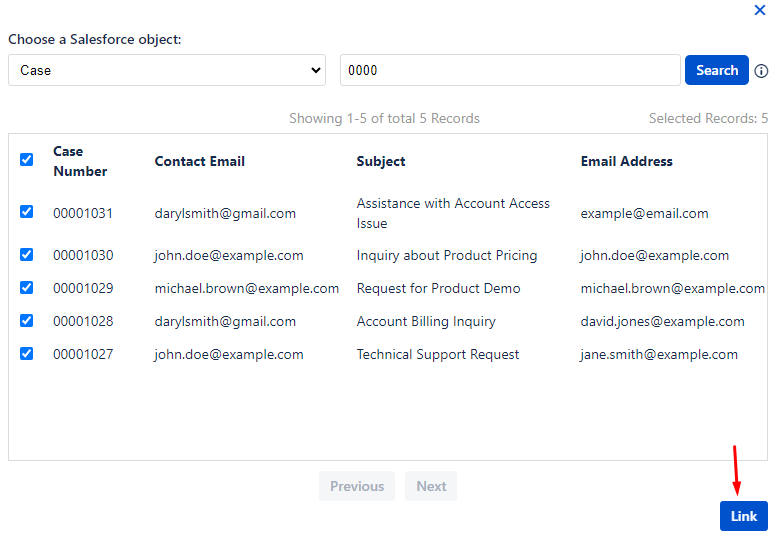

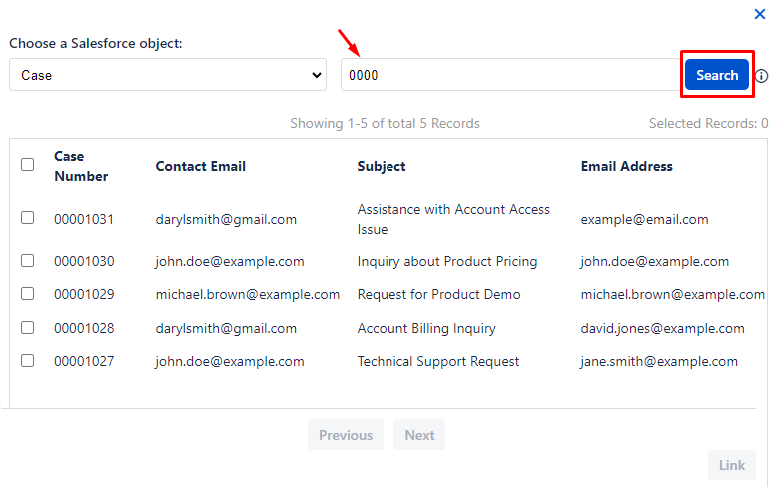

A new window will open. Search the Salesforce records by typing the appropriate keywords in the search field and then click 'Search'. Select the records that you want to link from available search results.
Select Link. The specific record will now be linked to the Jira ticket.
View Linked Salesforce Record Details

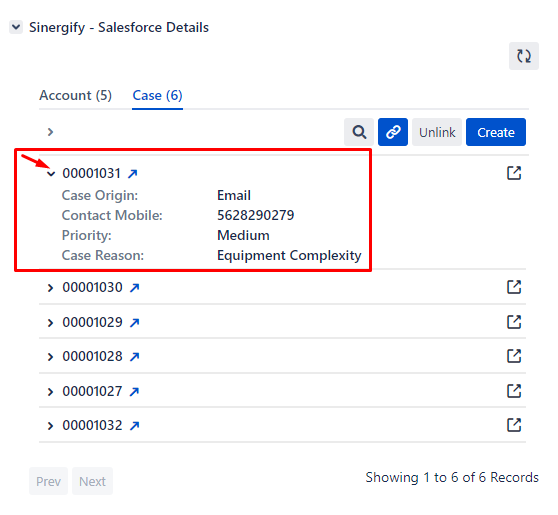

You will see the linked records within the Sinergify App Under the Specific Object. For. eg. Case, as shown below.

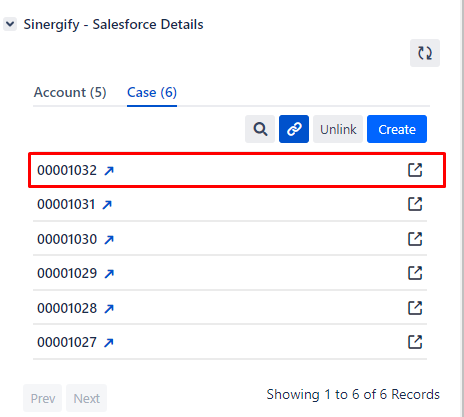

[Viewing a Salesforce record overview from Sinergify Compact View]

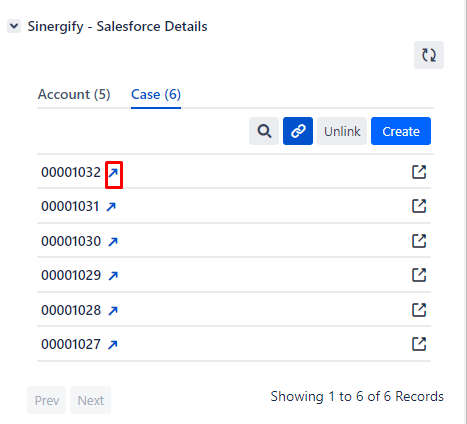

To see a more detailed view of the linked Salesforce record, click the Pop Out Icon as shown below.

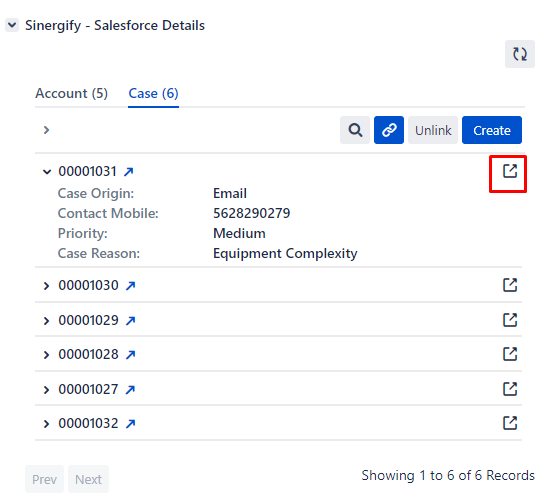

[Compact View: Open Salesforce Record Detailed View via Pop-Up]

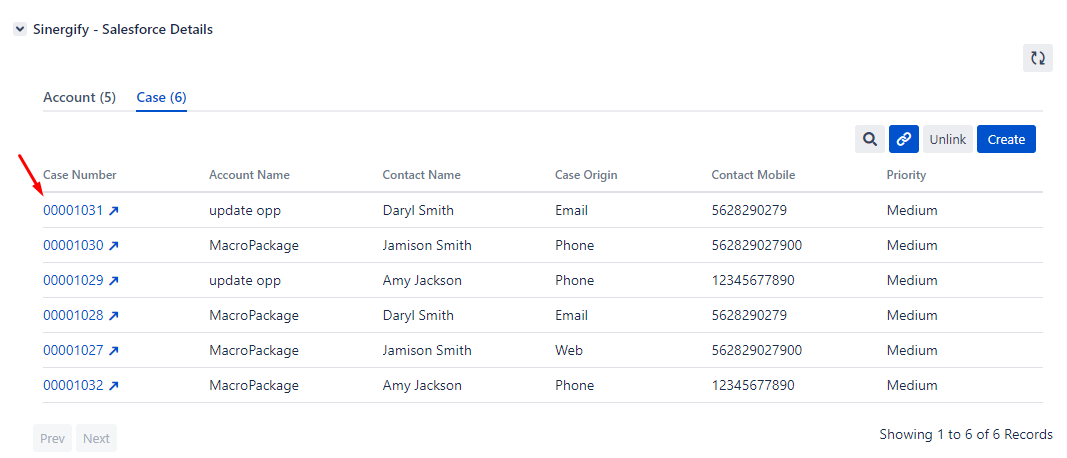

[List View: Open Salesforce Record Detailed View via Hyperlink]
A new window will pop up, and you will see the four tabs along with the Case object Details i.e. Case Number.
-
Details
-
Comments
-
Feed posts
-
Emails

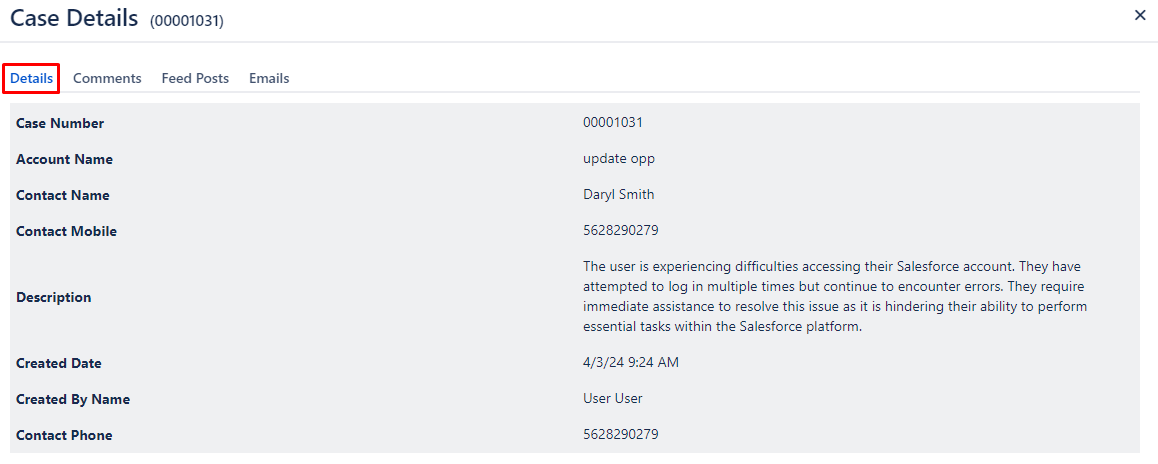

Details
This tab is used to show all the fields that are selected under the configuration screen for the linked SF record.

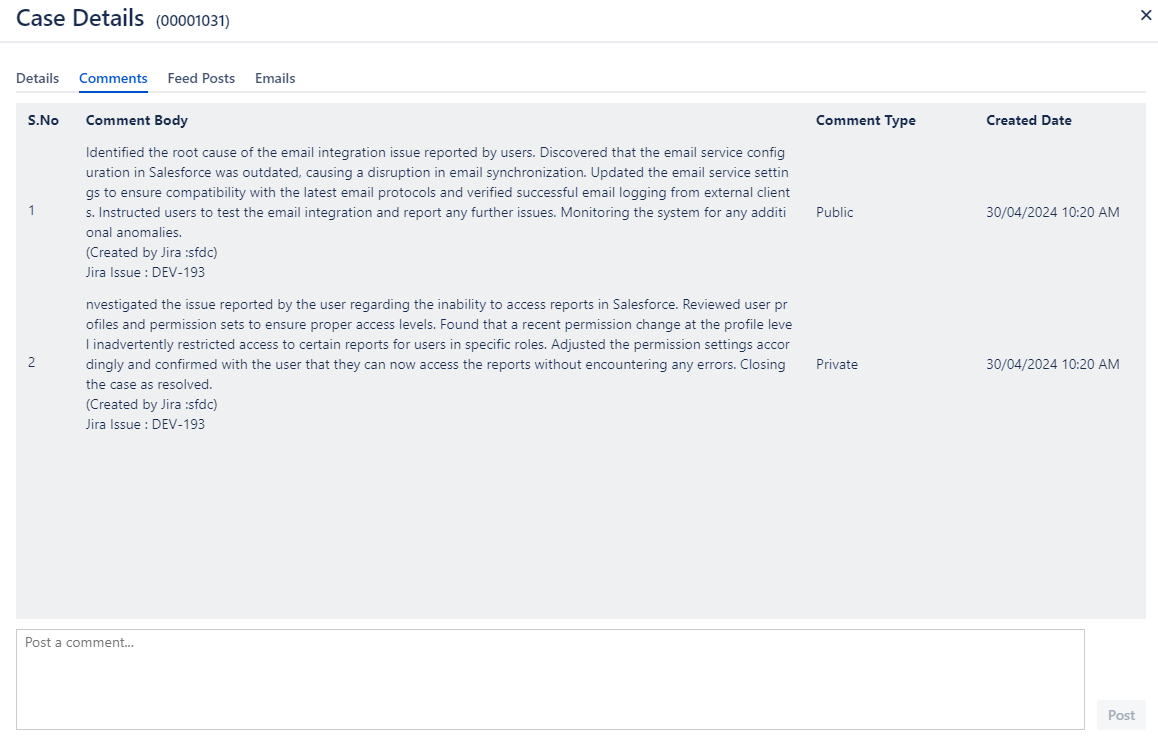

Comments
The comments tab will display all the case comments posted in Salesforce. We can also post the Case comments from Jira, posted comments will be displayed along with the signature. The Tab visibility can be controlled by a Jira Admin.

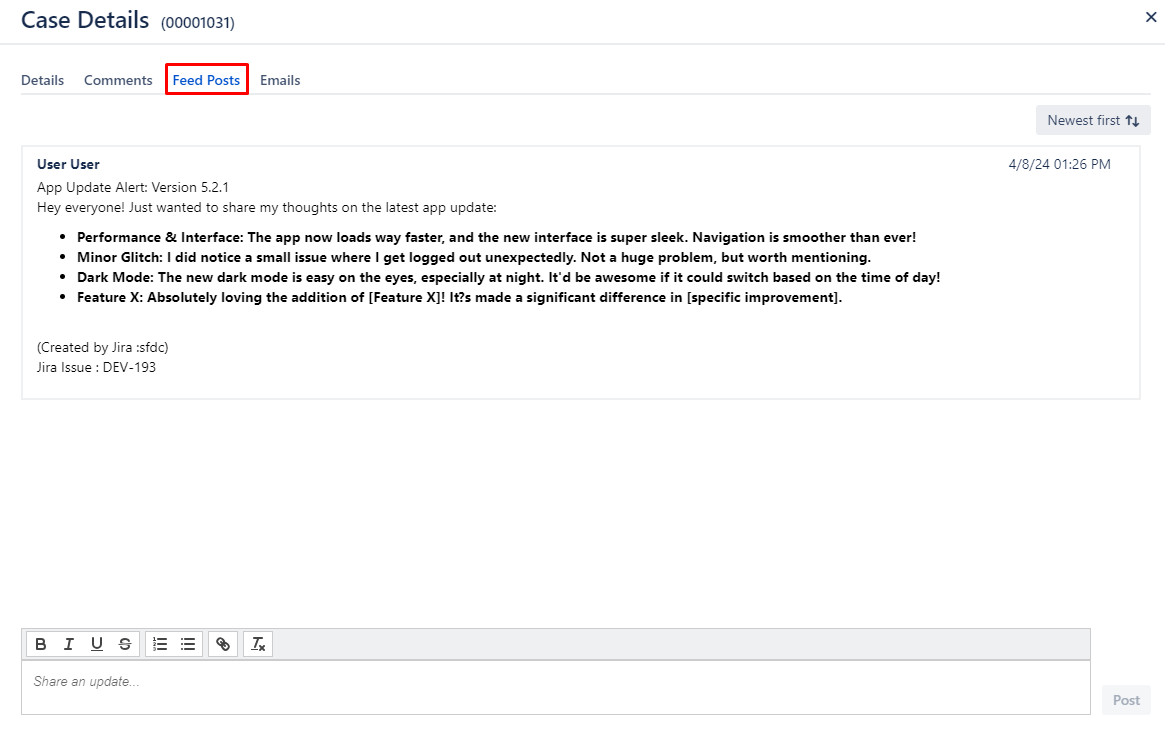

Feed Post
The feed post will display all the Feed items of the current Salesforce record and we can also create a feed post from Jira where posted feeds will be displayed along with the signature. The Tab visibility can be controlled by a Jira Admin.
Points to remember:
-
The feed post tab will also have support for Rich Text.
-
The feed post tab will be available for only those Salesforce objects whose feed is enabled under Salesforce. Jira Admin can further control tab visibility as explained below under ‘Install and Setup Plugin in Jira’.

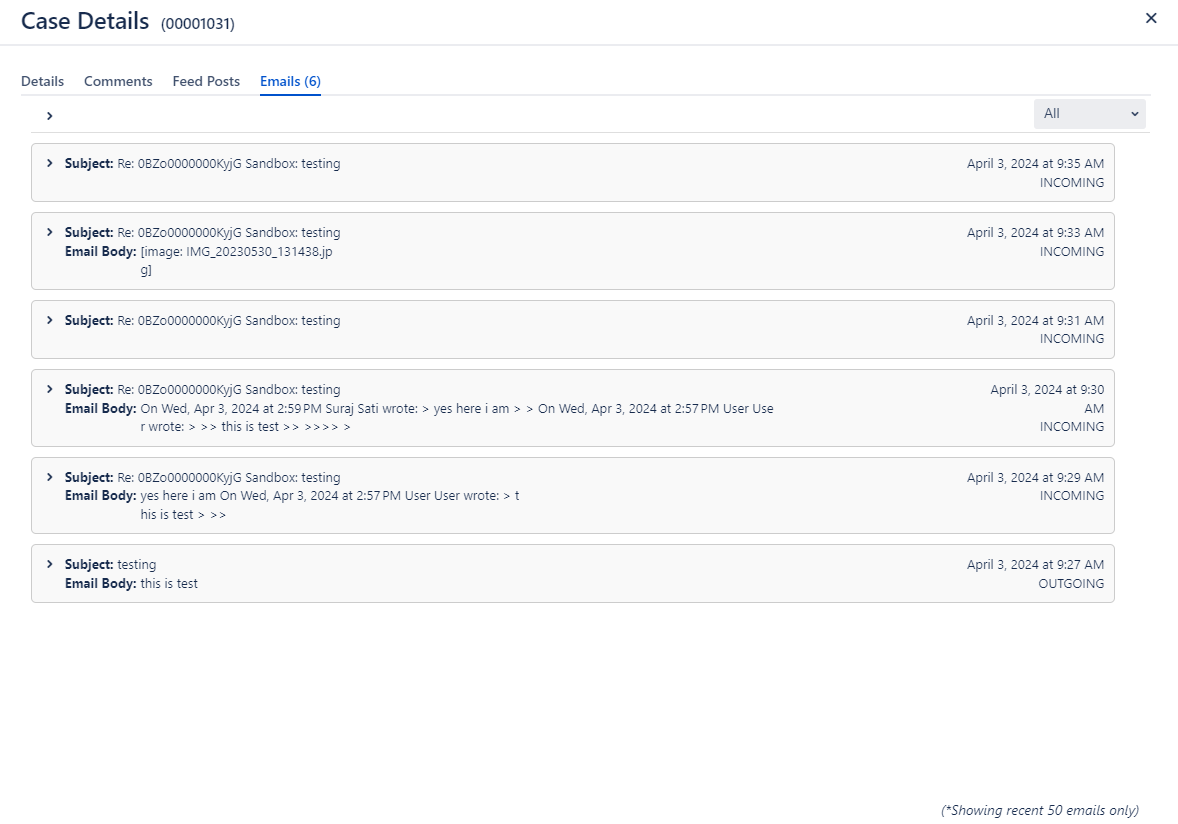

In the email messages tab you can see all the Emails of the Current Salesforce Record. The tab visibility can be controlled by the Jira Admin.

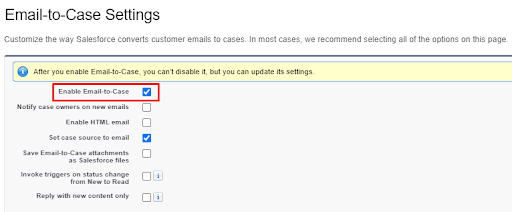

Note: The Email to Case must be enabled in Salesforce.
Unlink Salesforce records

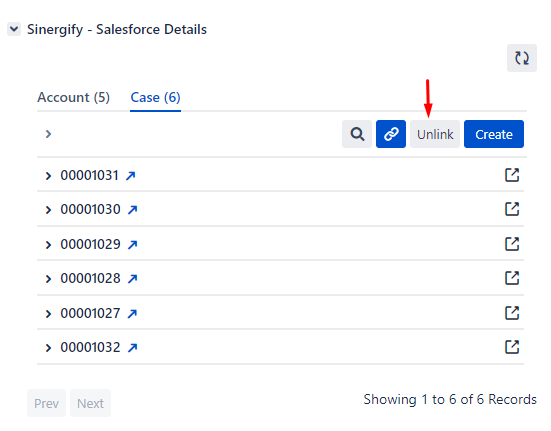

If you wish to remove a Salesforce record that is already linked to the current Jira, select 'Unlink'. Multiple records can be unlinked at once. Click on the checkbox to 'Unlink' the records.

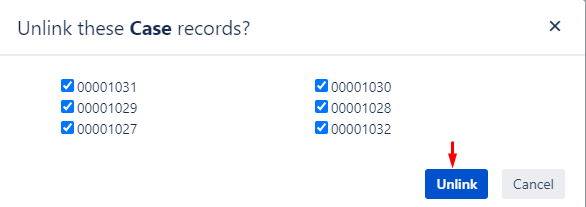

After clicking the ‘Unlink’ button, choose the checkbox next to the case you wish to unlink. A pop-up will appear showing the records. Continue by selecting the 'Unlink' button.
Let's follow the step-by-step configuration guide below to achieve the above use cases.
Setup Plugin in Salesforce
-
Before we install the application in Jira, we need to create and set up a Connected App within Salesforce.
-

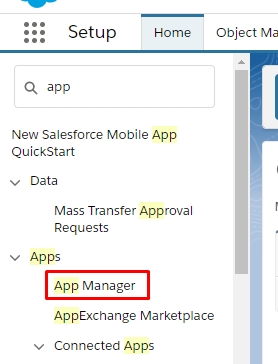

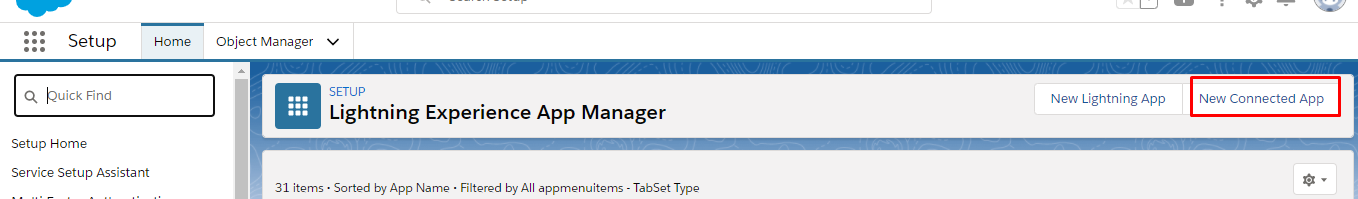

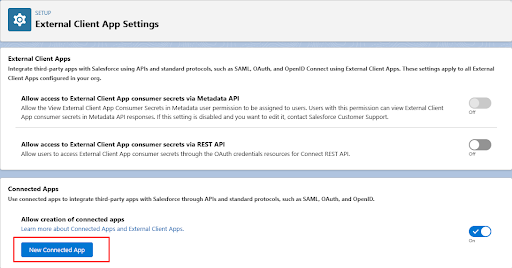

From the Setup page in your Salesforce Org, enter ‘App Manager’ in the Quick Find box and click on it from the search results
-

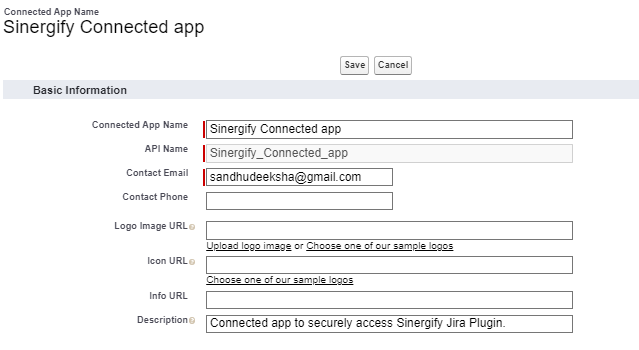

Basic Information
-
In the Basic Information area of the page, specify the following information to describe the connected app.
-
For the Connected app’s name, enter a name. For example, you can use ‘Sinergify Jira’.
-
For the Connected app’s API name, which is a unique identifier used when referring to the app programmatically, just press Tab. The API name defaults to the connected app’s name, replacing spaces with underscores.
-
For the Contact email, enter your email. Salesforce uses this contact information if they need to contact you about the connected app.
-
For the Logo image URL, leave it blank.
-
For the Icon URL, leave it blank.
-
For the Info URL, leave it blank.
-
For the Connected app’s description, enter the Connected app to securely access Sinergify Jira Plugin.
-
API (Enable OAuth Settings)
-

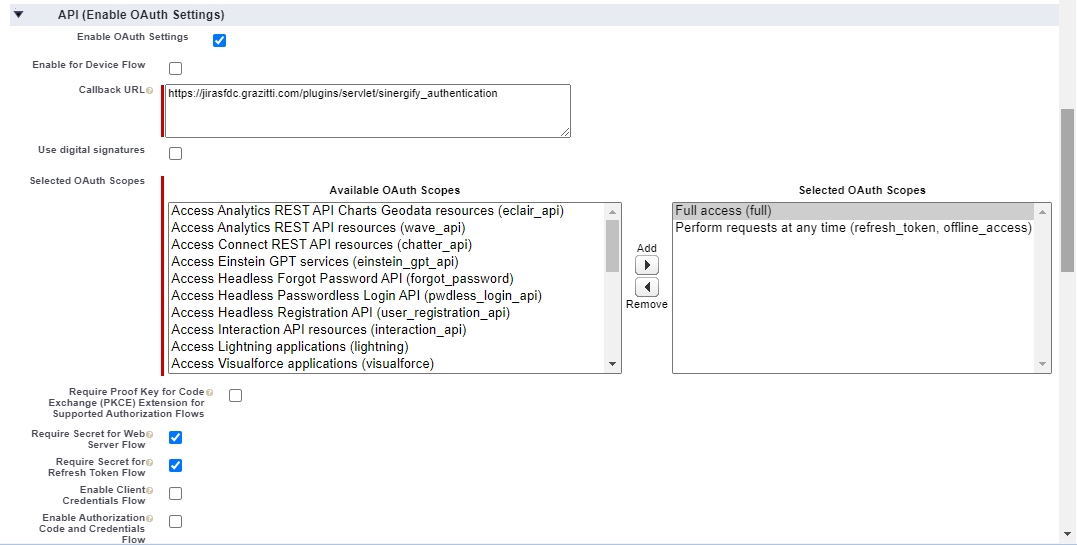

In the API (Enable OAuth Settings) area of the page, select Enable OAuth Settings.
-
Enter the callback URL that will be: JiraInstanceURL/plugins/servlet/sinergify_authentication.
-
Move ‘Full access’ and ‘Perform requests on your behalf at any time’ options from ‘Available OAuth Scopes’ to ‘Selected OAuth Scopes’.
-

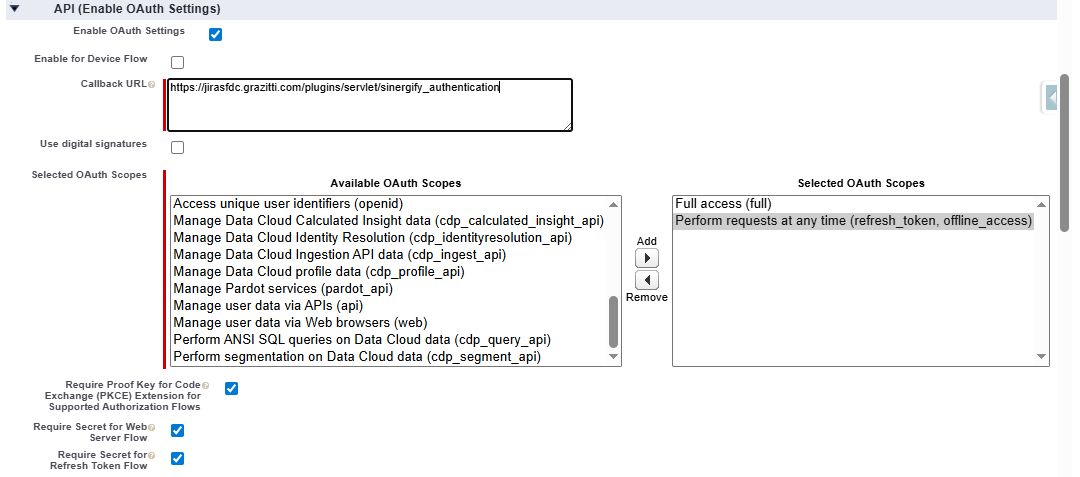

Deselect the 'Require Proof Key for Code Exchange (PKCE) Extension for Supported Authorization Flows' Checkbox.
-
Leave any other settings as default and select Save.
-

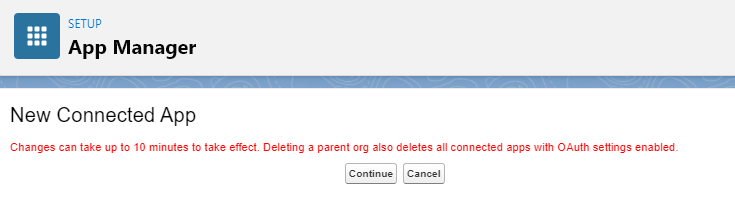

If the below pop-up is visible, select Continue.

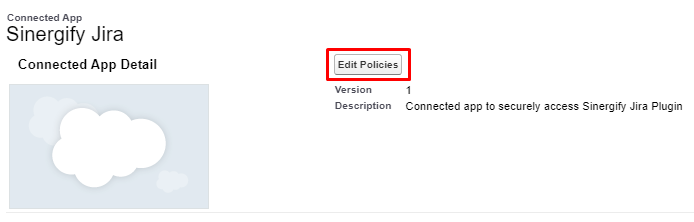

Note: Kindly save the Consumer Key and Consumer Secret visible under API (Enable OAuth Settings). These will be populated once all the above steps are completed. It can also be accessed again via App Manager> Select the app you just created> Under the drop-down select View.
-

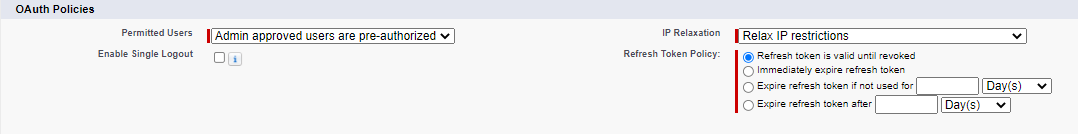

Permitted Users - Admin approved users are pre-authorized
-
IP Relaxation - Relax IP restrictions.
-
Refresh Token Policy - Refresh token is valid until revoked
-
Select Save.
-

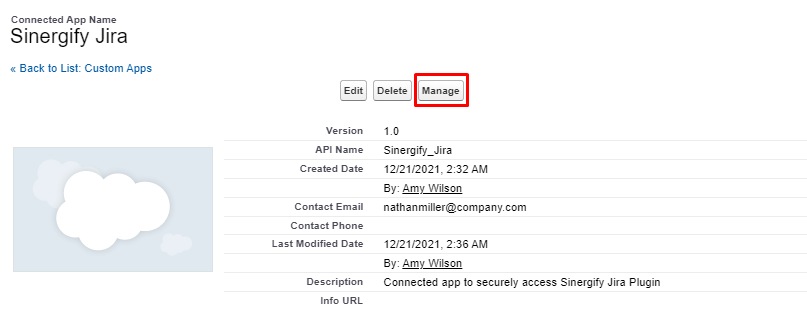

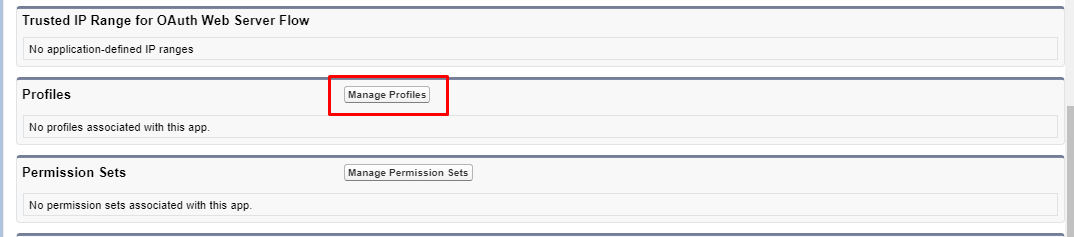

On the same page, click Manage Profiles.
-

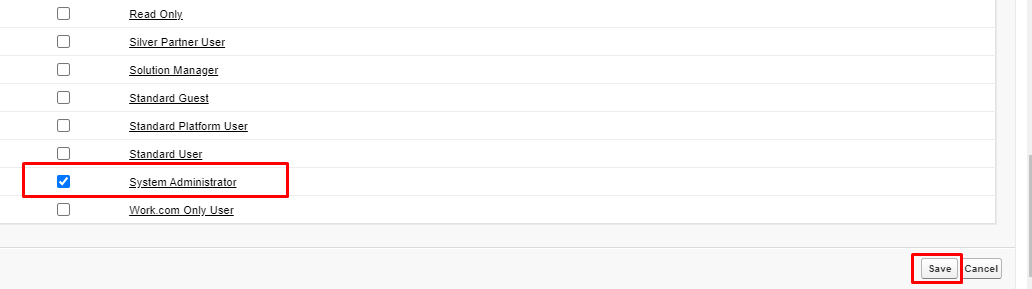

Check the box(es) next to the profiles that you want to include and select Save. Make sure the profile of the specific Salesforce user who will be used to Authenticate Jira Plugin is checked.
Install and Setup Plugin in Jira
Installation

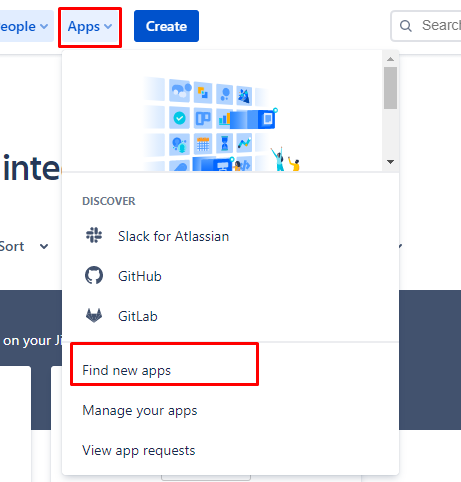

Select Apps, under the drop-down menu select, Find new apps in your Jira instance.

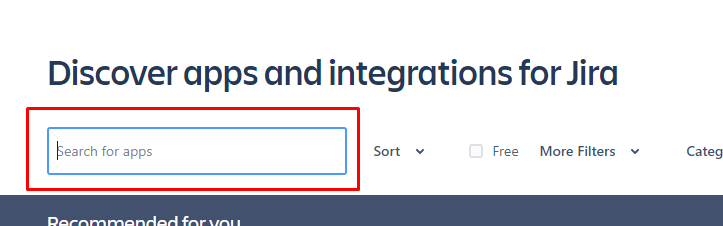

Enter Sinergify in the Search for apps input box and press enter.

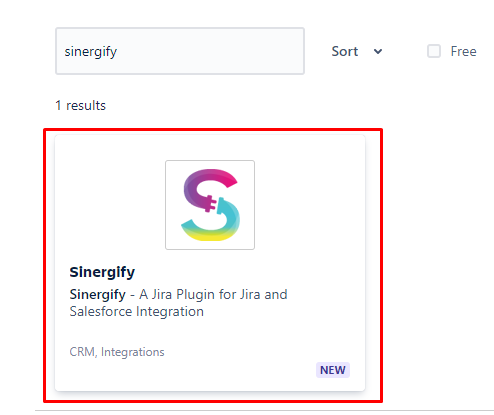

Select Sinergify under the results.
Select Get App to install the application in the background. Follow the steps below once the app is installed.
Authentication
In the Apps drop-down, select Manage Apps.
Select Authentication under the Sinergify sub-section on the left panel.

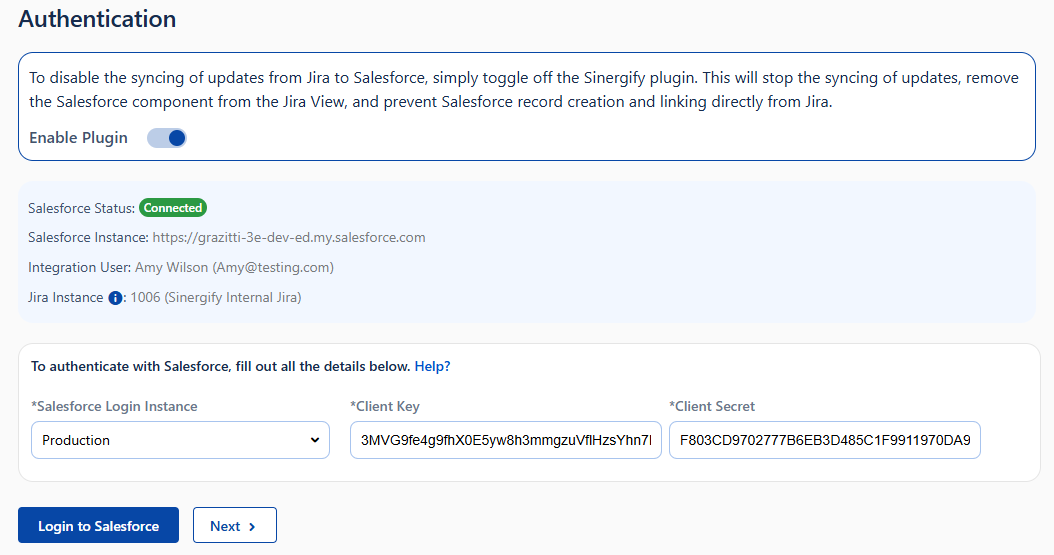

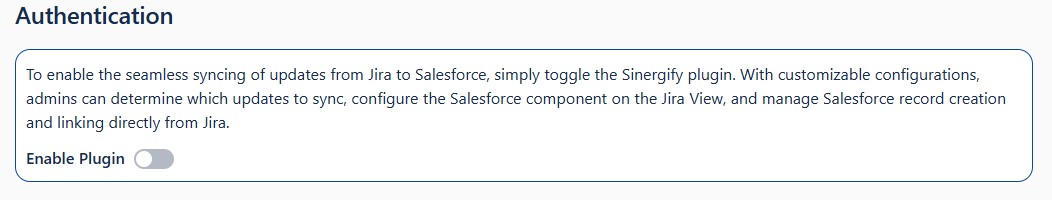

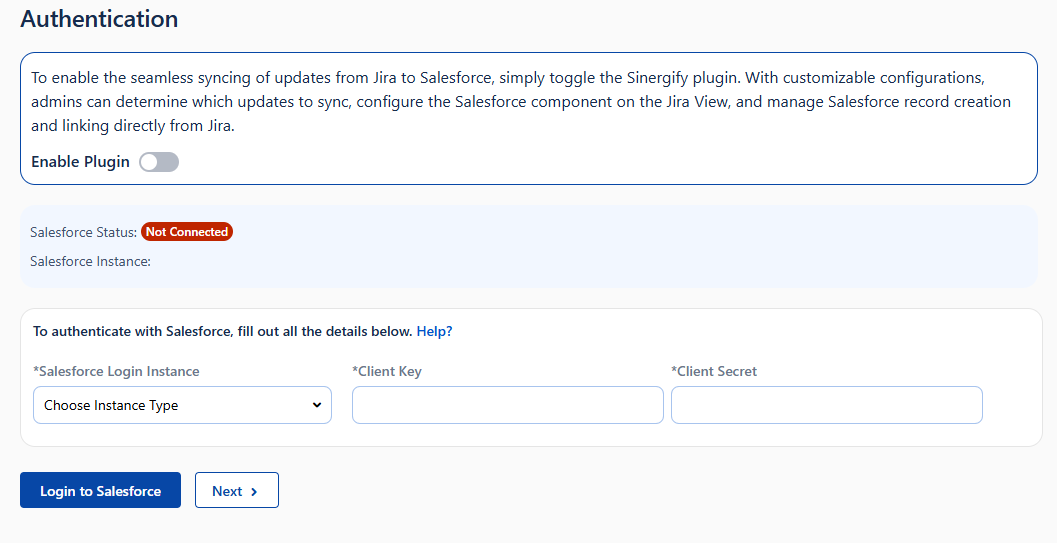

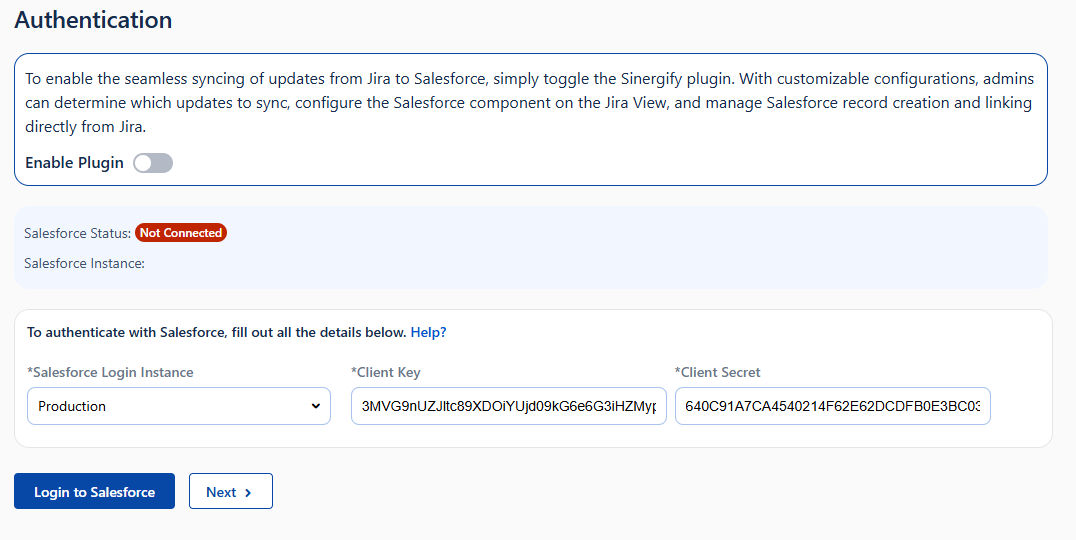

The authentication screen will appear.
Option to 'Enable or Disable the Plugin' Sinergify plugin allows updates to sync from Jira to Salesforce. With configurations, the admin can decide what updates to be synced from Jira to Salesforce, configure the Salesforce component on Jira View, Salesforce record creation and linking from Jira.
Enter the Salesforce login instance URL along with the Client key (consumer key) and Client secret (consumer secret) of your connected app.
Note:
-
You can now use the Consumer Key and Consumer Secret that you saved earlier in Connected App Setup, Step 7.
-
If you have a developer or production org, the URL will be https://login.salesforce.com, If not, it will be https://test.salesforce.com

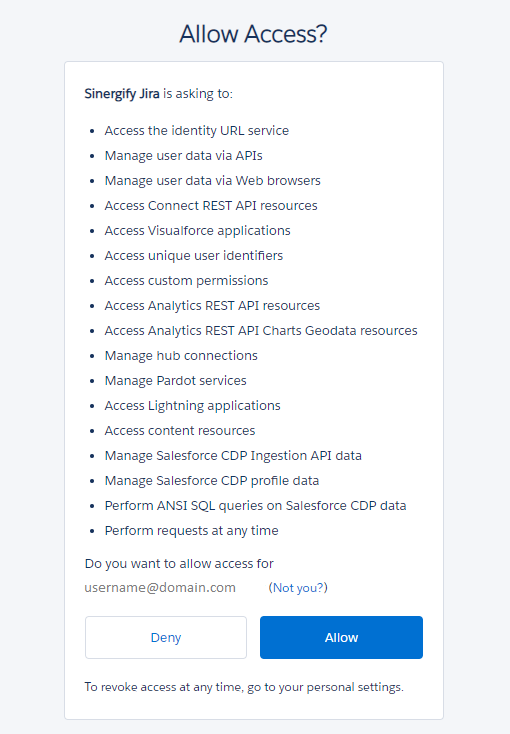

Select Login to Salesforce. This will redirect you to the Salesforce login page. Type in your credentials and Select 'Allow' on the Allow Access pop-up screen.
If the authentication process is successful, the status of Salesforce will be updated from 'Not Connected' to 'Connected.' The Jira Administrator will be able to see a few additional details as mentioned below.
-
Salesforce Instance URL
-
Integration User’s Name and Email
-
Instance Number and Instance Name
Select Next to Setup the Event Configuration screen.

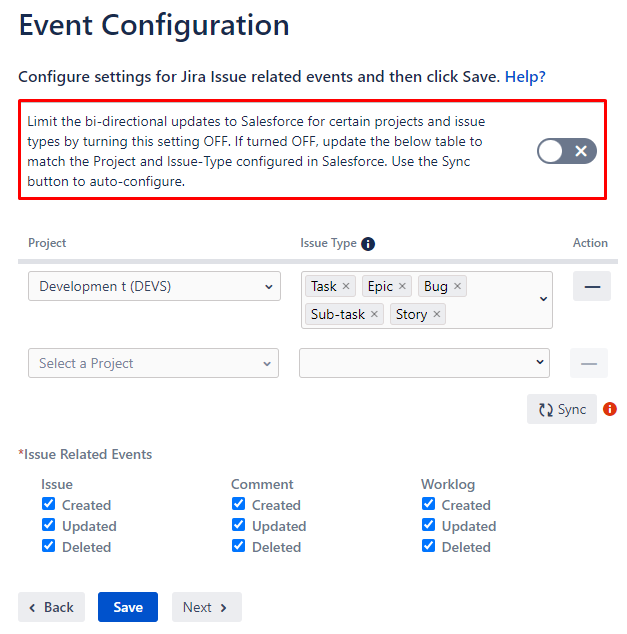

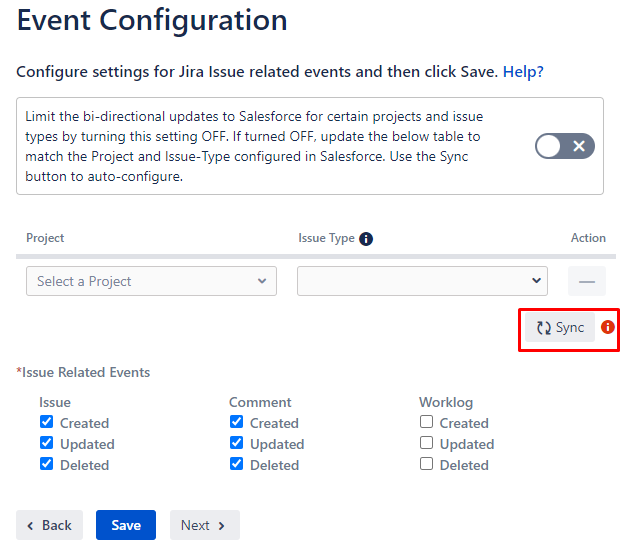

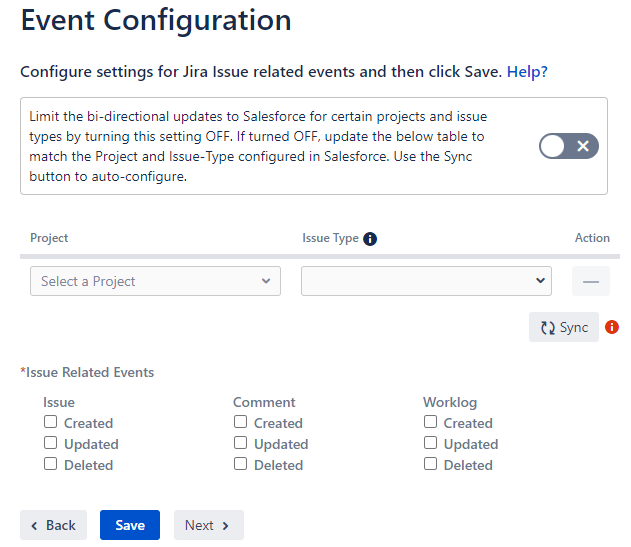

Event Configuration
Event Configuration is used to Configure settings for Jira issue-related events.
Enable Toggle: When the Enable Toggle is turned on, it activates the firing of events across all mapped project and issue types.
If the toggle button is off it specifically enables the firing of events for the project and issue types mentioned in the table.
Use the Sync button highlighted to Auto configure.

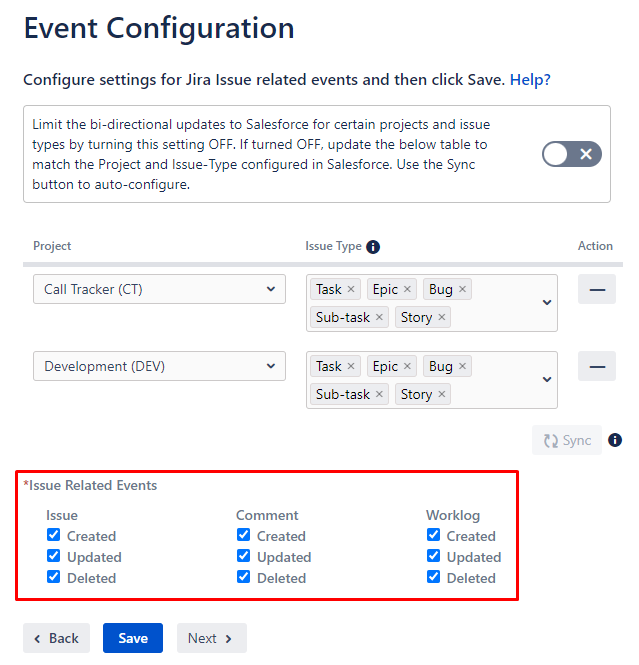

Issue related events: Select the Issue-related events for which the events should work.

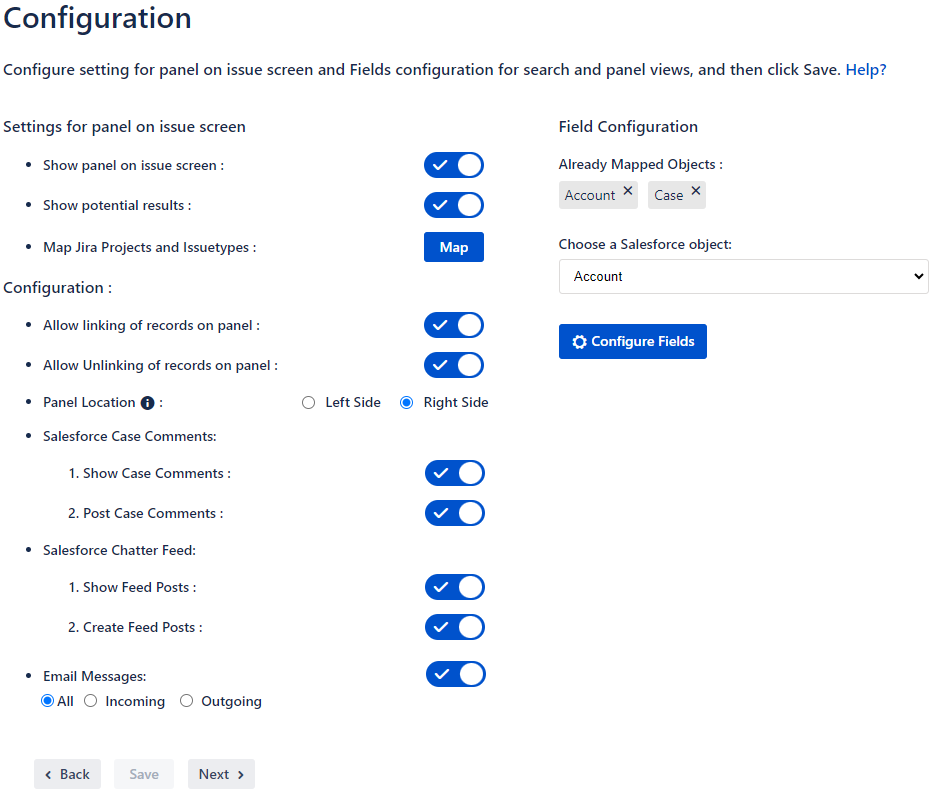

Configuration
Settings for a panel on the issue screen
Show Panel on Issue Screen: Toggle this option to show or hide the Sinergify application completely from the Jira Issue Record.
Show potential results: Display or hide the potential results section on the Create Salesforce record screen.

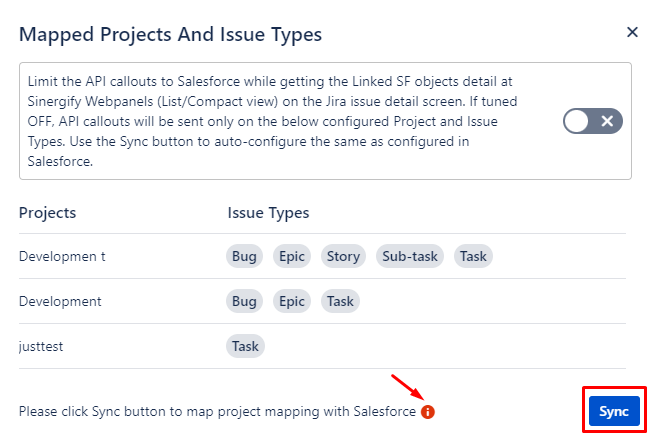

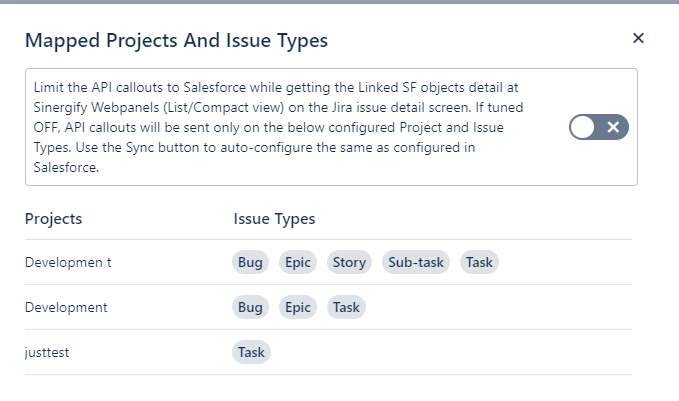

Map Projects and Issue types: Click on the Map button to see all the mapped Projects and Issue types configured inside the Sinergify Admin setting. You can also limit the API callouts to Salesforce while getting the Linked SF objects detail at Sinergify Webpanels (List/Compact view) on the Jira issue detail screen.
Note:
-
Modifying (Changes in project or issue types ) the Sinergify Project settings will be alerted by the icon highlighted icon.
-
Click on the Sync Button to Auto-configure the Project and issue types.
Panel Location: Select the location of the Sinergify application, either the Right Side or Left Side. By clicking on the icon [i], you can see the pictorial representation of the panel location and its use case.
Allow linking of records on the panel: Toggle this option to Enable or Disable the linking of Salesforce records.
Allow Unlinking of records on the panel: Toggle this option to Enable or Disable the unlinking of Salesforce records.

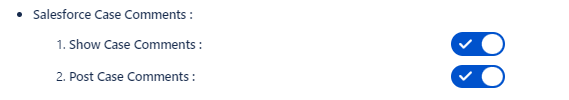

Salesforce Case Comments:
-
Show Case Comments: Toggle the button to Enable or Disable the Case Comments Tab for Jira Users.
-
Post Case Comments: Toggle the button to Enable or Disable the posting of new Case Comments for Jira Users and keep it to view only.

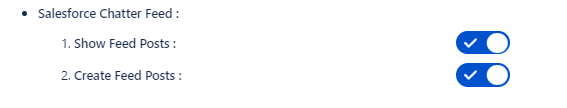

Salesforce Chatter Feed
-
Show Feed Posts: Toggle the button to Enable or Disable the Feed Tab in Jira Records.
-
Create feed Posts: Toggle the button to Enable or Disable the creation of new Feed Posts and keep it Read-only.
Show Email messages: Enable the toggle to see the email messages on the view detail page.
Field Configuration

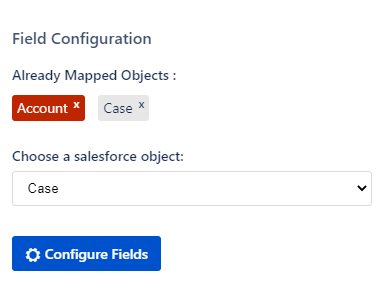

Already Mapped Objects: This will show you the Objects that have been mapped on the Salesforce side Administration Panel. If the object is removed from Sinergify admin settings then the Object will be shown in Red. See the reference screenshot.
Note: If you do not see any Object, kindly complete the Project Mapping & Field Configuration on Salesforce.

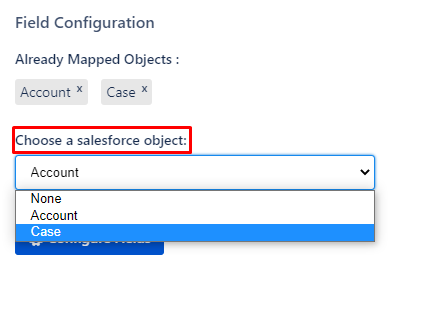

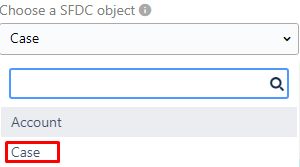

Choose a Salesforce Object: Select the Salesforce object for which you want to Configure and then Select Configure Fields. If no Object is selected, the button will not be visible. Objects in the drop-down will appear with respect to what you have configured in the Salesforce Sinergify Admin setting.
Configure Fields

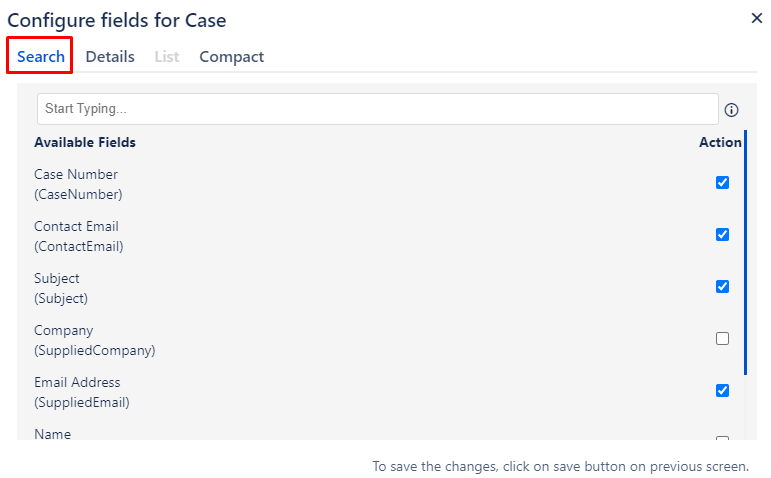

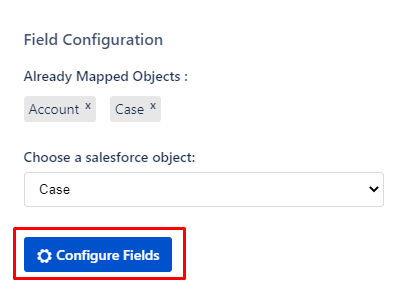

Click on 'Configure field' to Configure the fields for Object. A new screen will pop up with 4 tabs - Search, Details, List View, and Compact View.
Search
Search results will be pulled in Jira using the fields selected below. You can select up to a max of 5 fields. Search your Salesforce fields under Available Fields and then select the Checkbox.

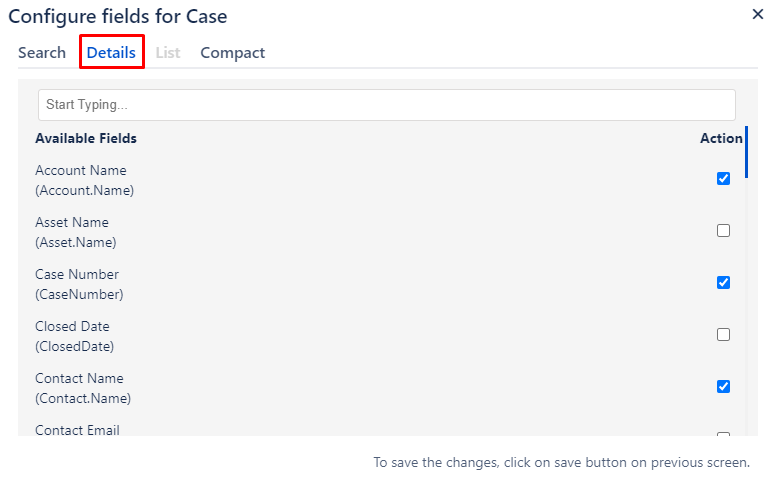

Details
Salesforce object fields selected in this section will be used to show salesforce record details on the Jira issue page. Search your Salesforce fields under ‘Available Fields’ and then select the Checkbox. The order of the fields will be displayed on the Jira page as per the selection.

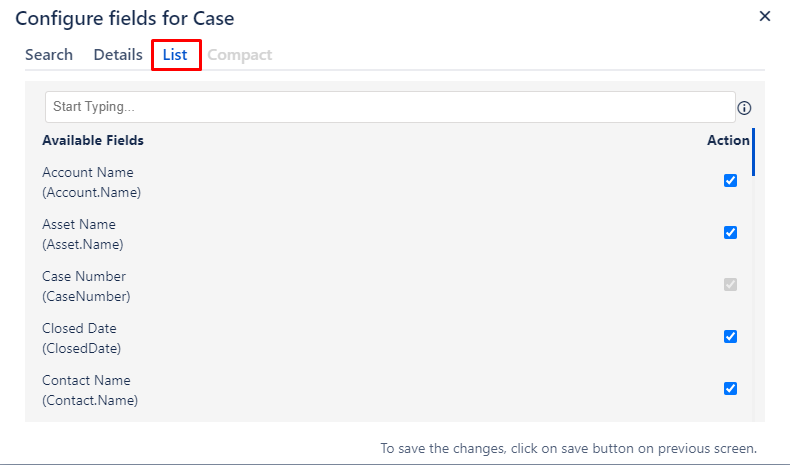

List View
The list tab will contain only those fields whose maximum character length is less than 256 characters and the selected field will be displayed on the list view panel on the Jira issue Page. For. E.g. For Objects like Case, Case Number will be auto-selected. See the reference screenshot below.

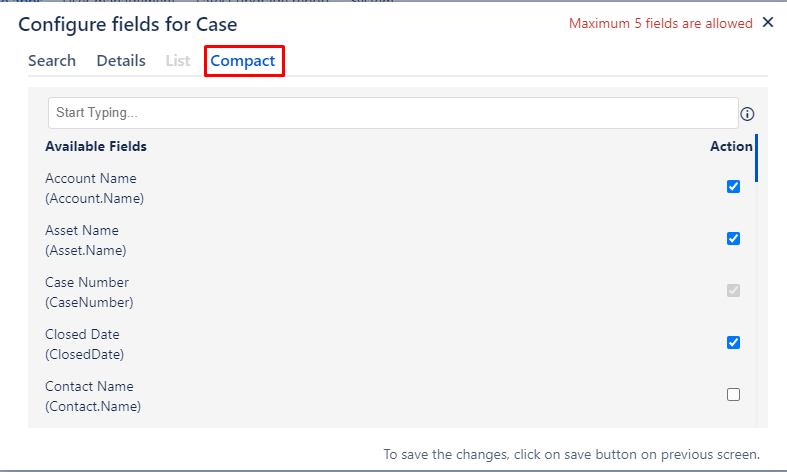

Compact View
The Compact View will only display those fields whose maximum character length is less than 256 characters and at most 5 fields can be displayed in that view. Standard fields like Case Number (When Case Object is mapped) will be Pre-selected and displayed by default.
Once you have selected all the desired fields under each section, close the popup window from the top right. Select Save and then select Next.

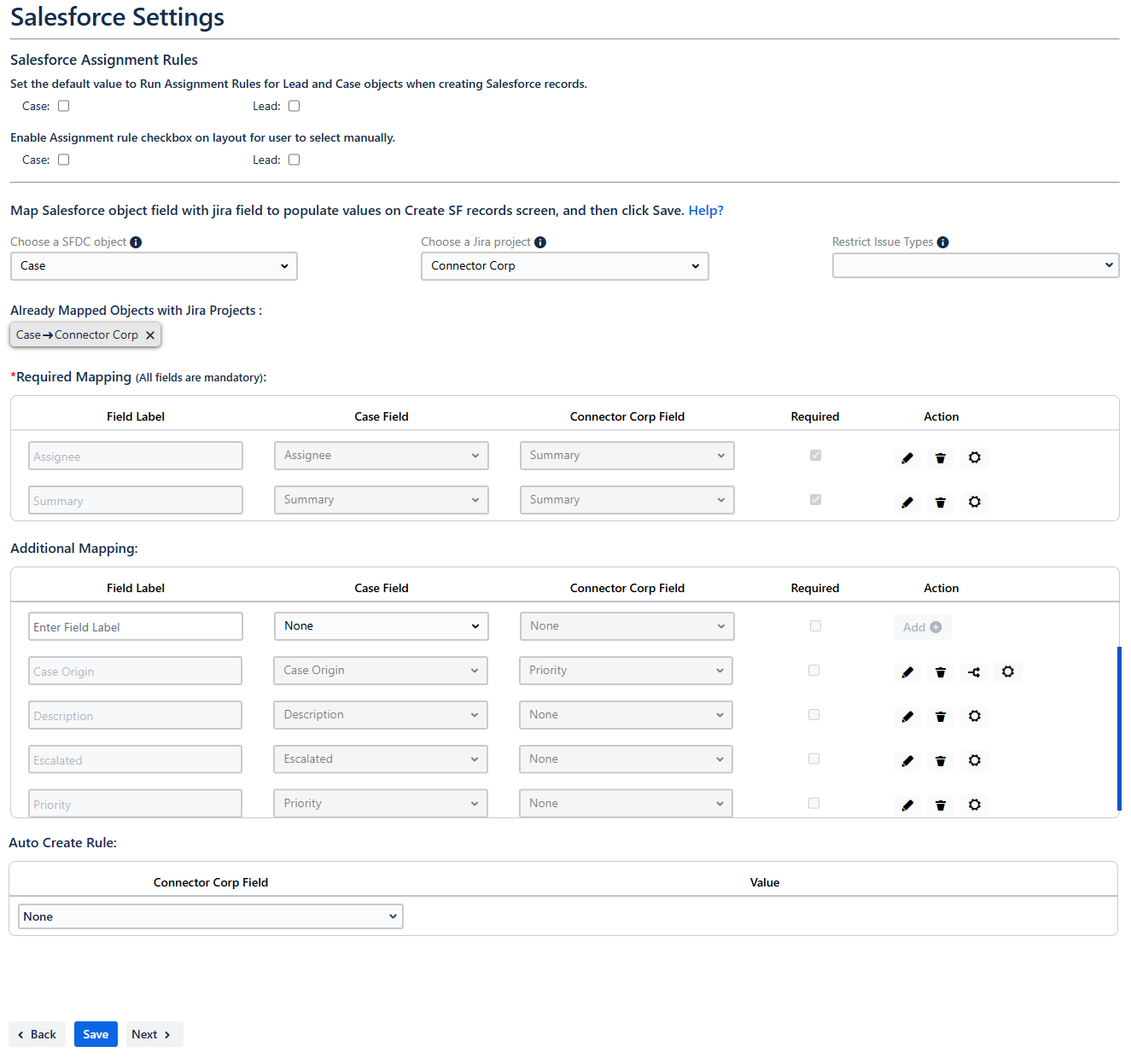

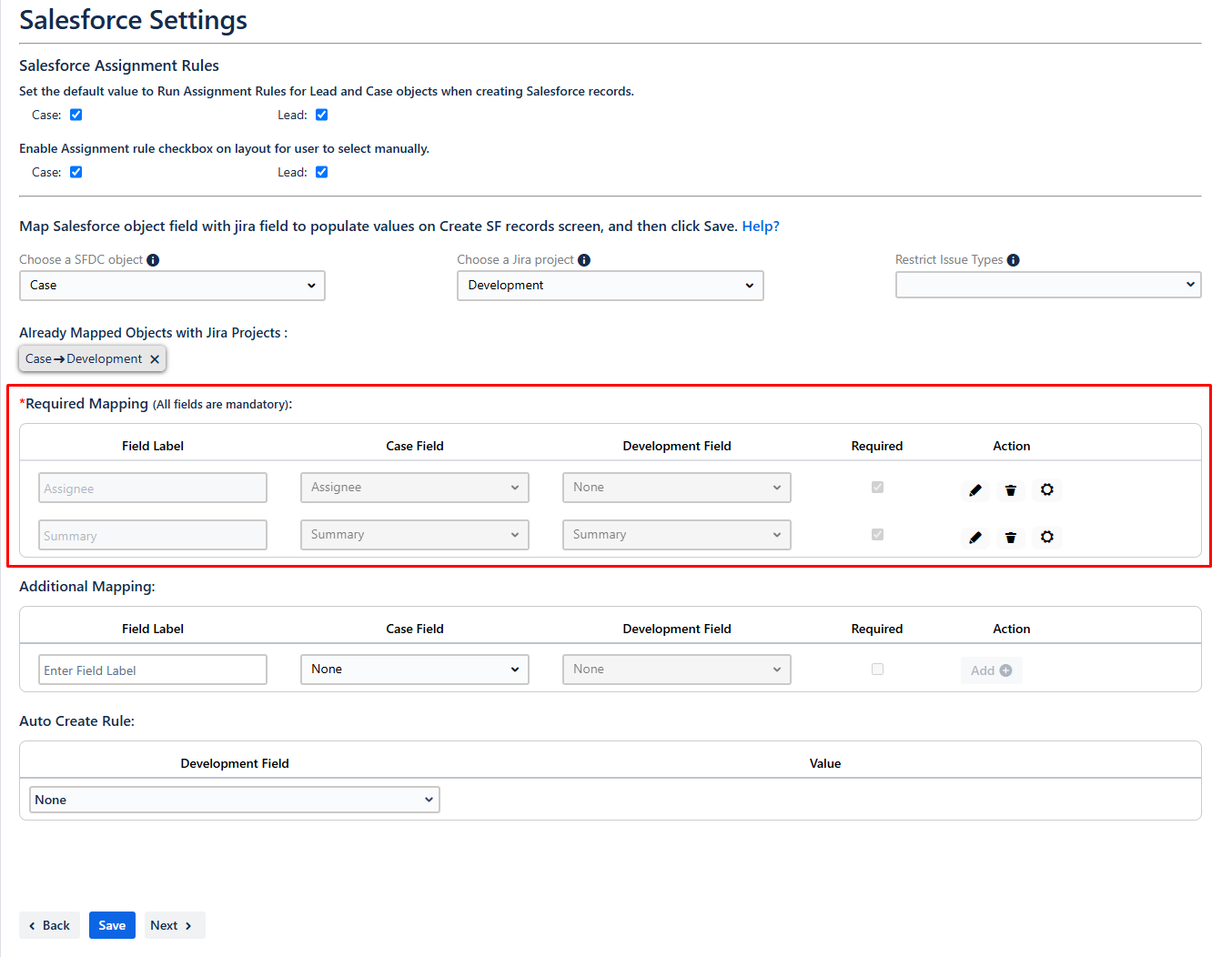

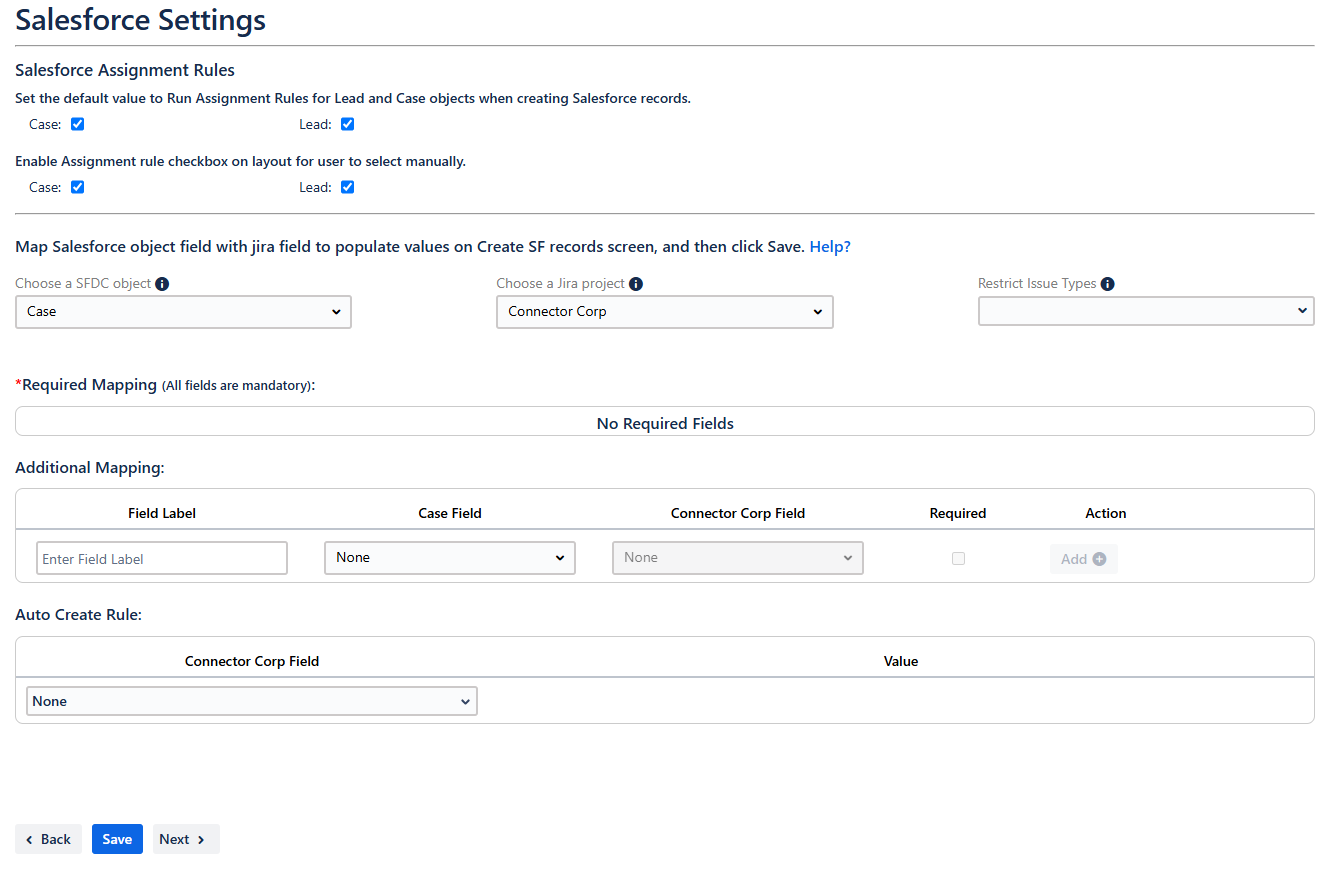

Salesforce Settings
It is used to map Salesforce Object fields with Jira project fields to populate the field values on the Create Salesforce Record Screen.

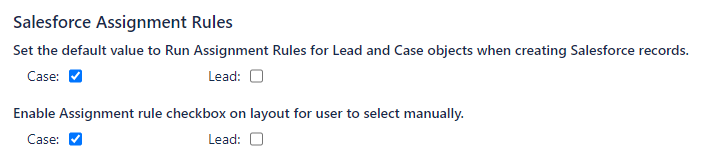

Salesforce Assignment Rules: Set the default value to run assignment rules for Lead and Case objects when creating Salesforce Records.
Choose a Salesforce Object: Choose the Salesforce object from available options. This will show objects that are mapped in both the Salesforce Admin setting and the Jira Configuration screen.
Note: In case there are no objects visible here that have been mapped in Salesforce, you should navigate to the Configuration Screen and map the object.

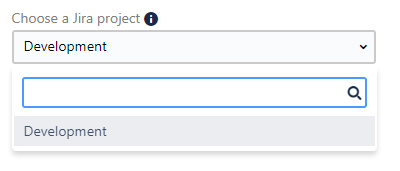

Choose the Jira Projects from the available list, the dropdown shows the projects Mapped in Both the Salesforce Admin setting and the Jira Configuration screen.
Note: In case there are no projects visible here that have been mapped in Salesforce, you should navigate to the Salesforce Project Configuration Screen and map the Project.
Based on the selected Jira project, the required field will appear.
You can edit the labels of the Jira fields. Only the names used in the labels for Jira fields will appear on the Record Creation page on the Jira side.

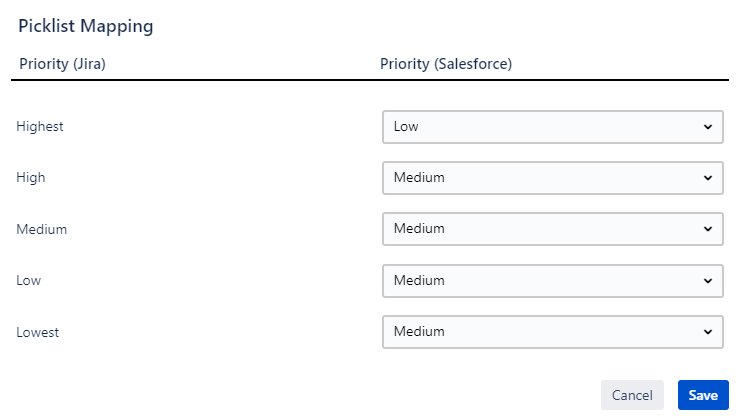

You can also decide the mapping of picklist values which is applicable only for picklist-type fields. To do this, click on the icon as shown in the screenshot below.
Once you select the values click on the 'Save'.

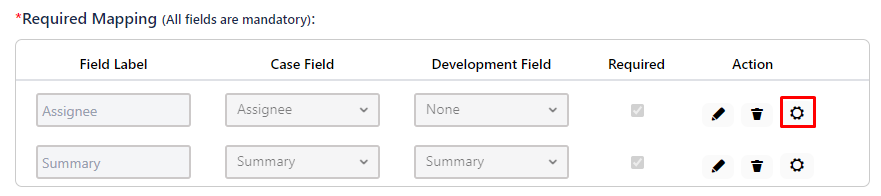

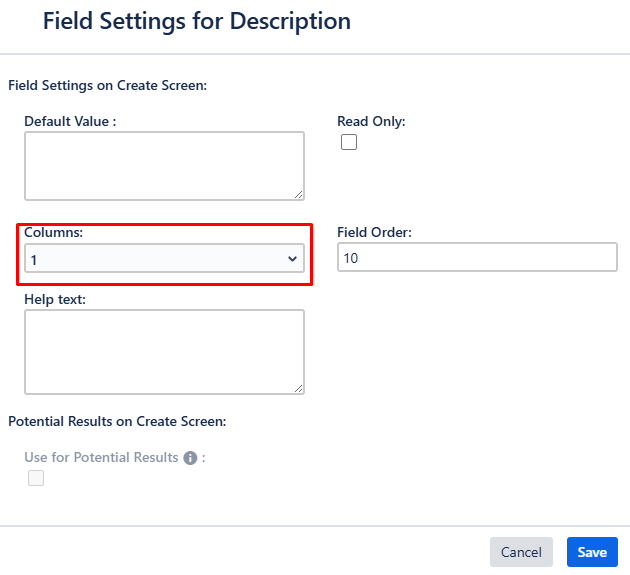

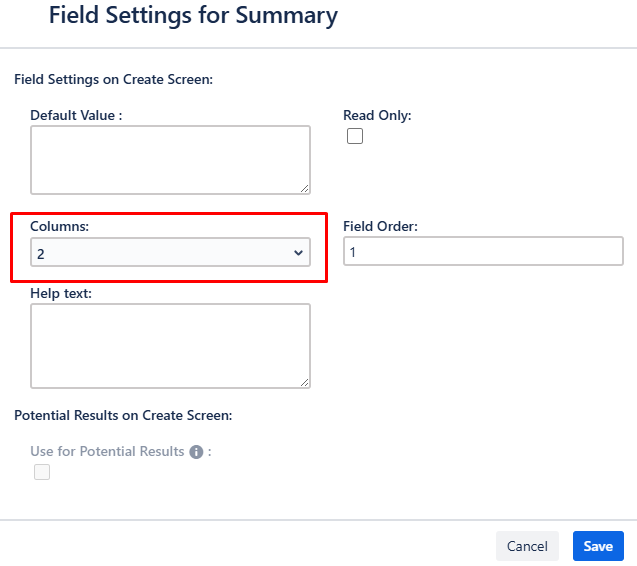

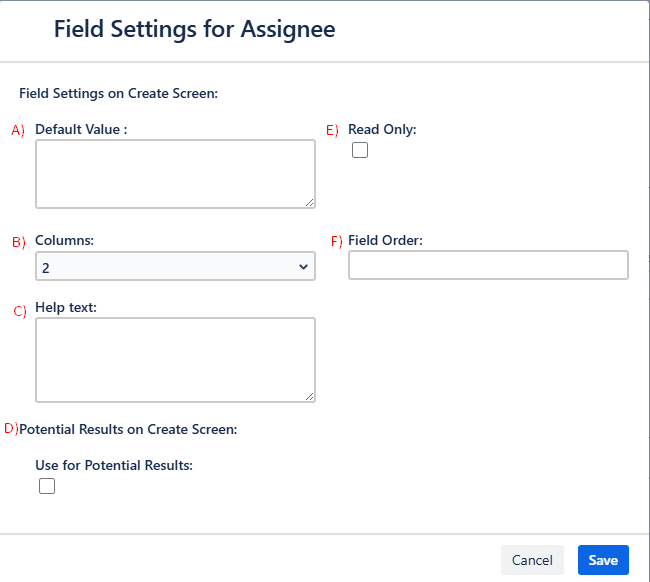

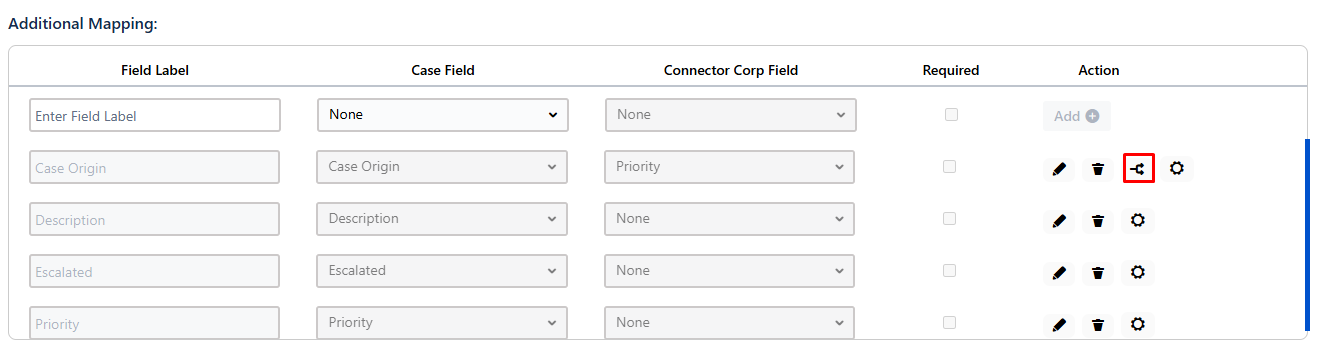

Click on the gear icon, to unlock further settings for respective fields.
Using Field Settings
-
Default Values: This feature allows users to set a default value for the Salesforce record field which is mapped in the Salesforce setting screen. It helps to see the default value in the desired field while creating a Salesforce record from Jira, eliminating extra effort for filling in a value.

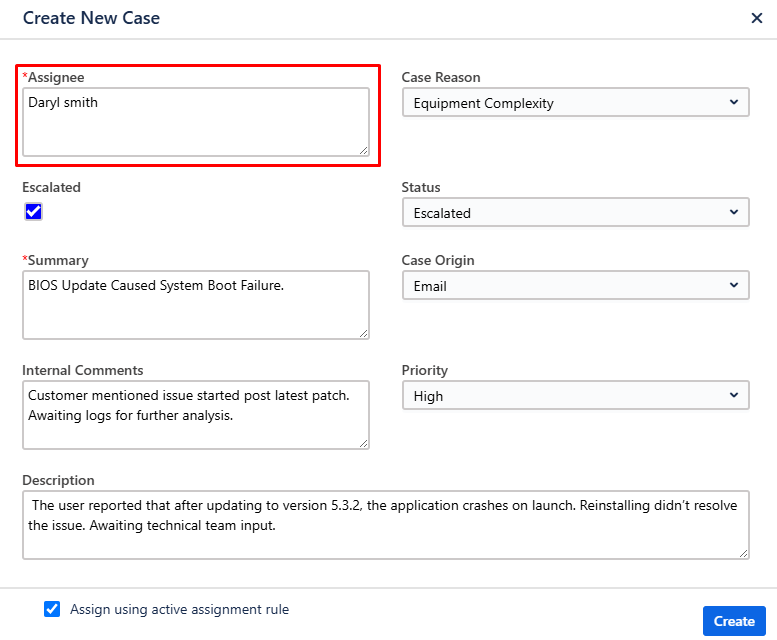

For example: We have set the default value for the Assignee. This is how it will look while Creating a Salesforce record.
-

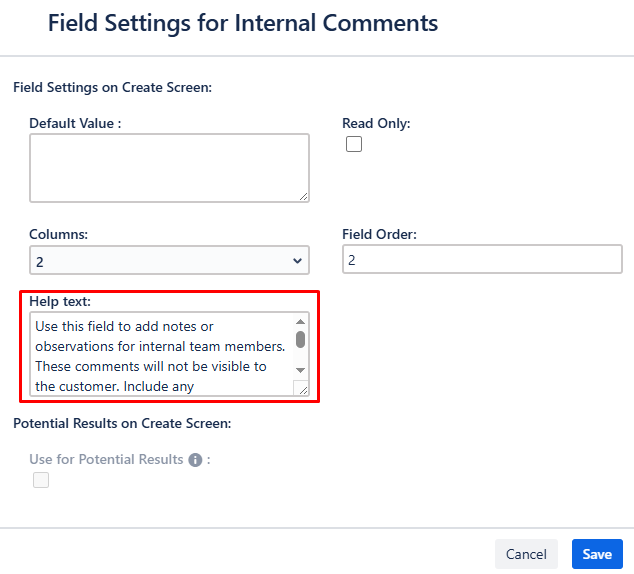

Help text: Type in a small description for the respective field to help end users better understand what this field is about.

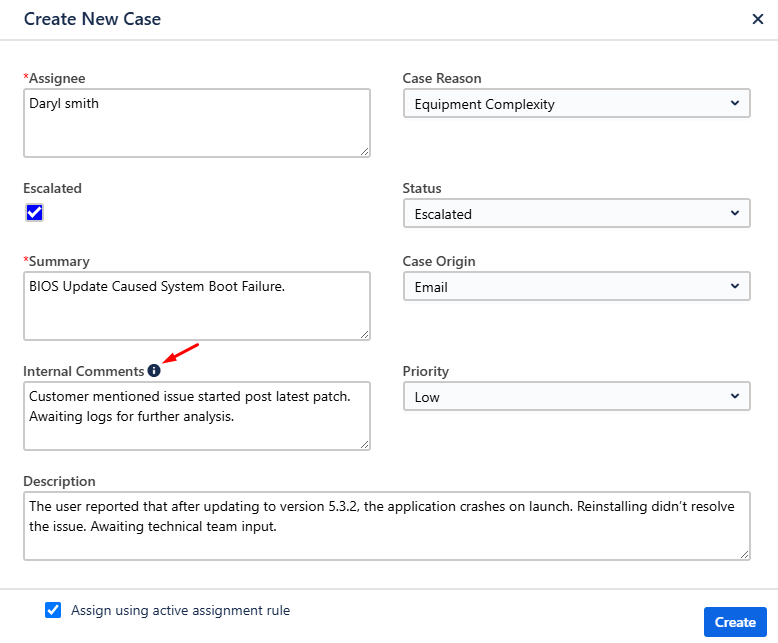

For example: We have given the Help-text for the field Internal comment.

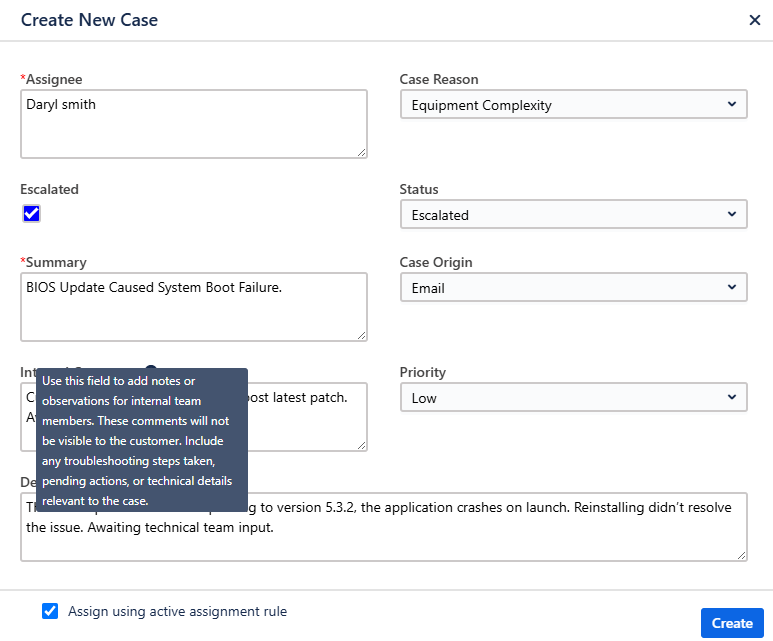

This is how it will look like on the Create Salesforce record screen.
-

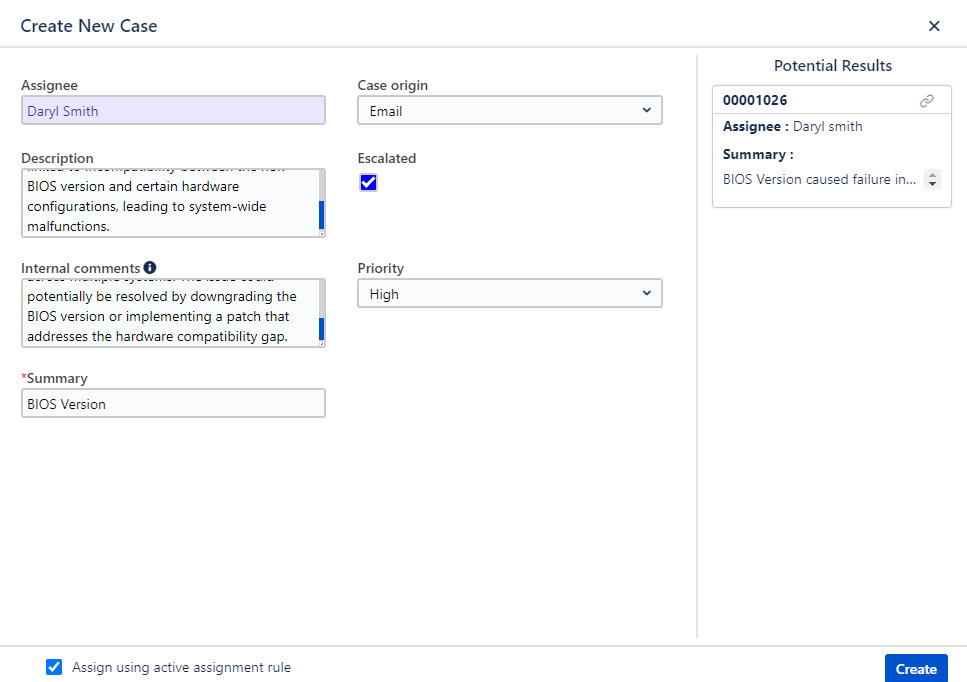

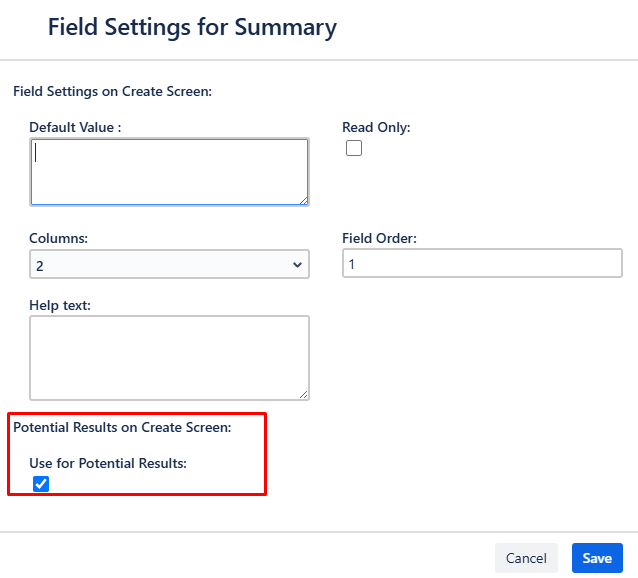

Use for Potential Results: The potential results feature searches for existing Salesforce record tickets in real-time and helps to prevent duplication and saves time. Admin can Enable/Disable the ‘Potential Results’ from the Configuration tab.
For example: We have selected the summary to represent the potential Results.
This is how it will look like on the Create Salesforce record screen.
-
Read only: Fields for which read-only is enabled cannot be edited on the Jira side. Users can only view these fields.
Plugin Uninstallation
Please follow the steps below in case Plugin needs to be uninstalled from the Jira Instance.

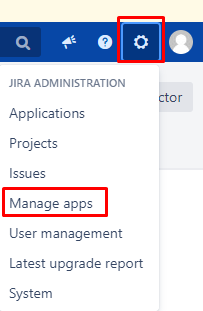

Click on the Apps tab, and under the drop-down menu, click Manage apps.
Click Manage apps under the ATLASSIAN MARKETPLACE section on the left of your screen.

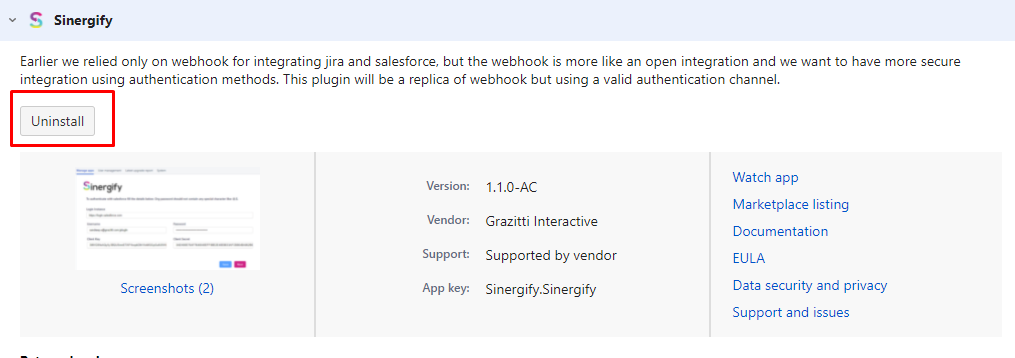

Click on the Uninstall option under the Sinergify app.

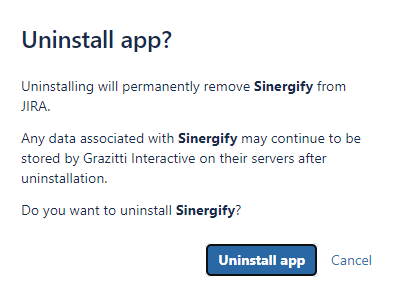

Select Uninstall and the application will be uninstalled.
